Fully Shielded T Body Elbow Connector 12KV / 24KV Elbow Cable Connector

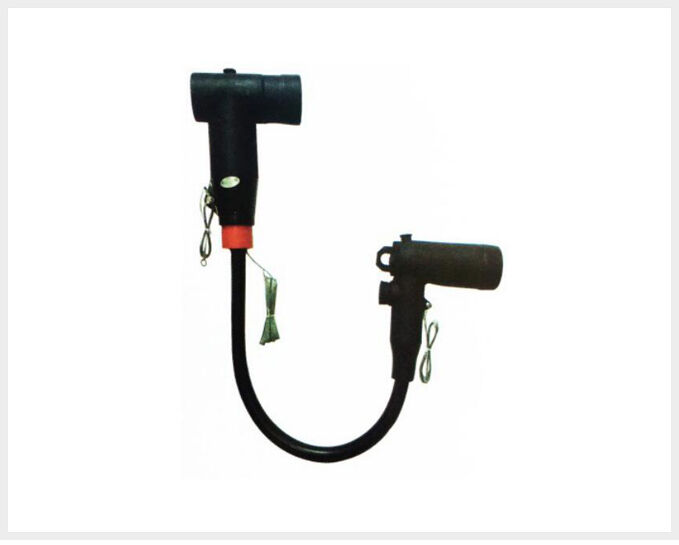

Large Image : Fully Shielded T Body Elbow Connector 12KV / 24KV Elbow Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	PT-S1-630

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$20
Packaging Details:	carton
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	15000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	T Body Elbow Connector	Rated Voltage:	12kV, 24kV
Rated Current:	630A	Structure Type:	3T Fully Shielded, European-American Hybrid Interface
Core Performance:	Flexible Bending, Customizable Cable Length, Full Shielding & Sealing	Connector Style:	European Elbow Rear Connector
Highlight:	Fully Shielded T Body Elbow Connector , T Body Elbow Connector 12KV , 24KV Elbow Cable Connector

European Elbow Rear Connector 12/24KV 630A Fully Shielded 3T Cable Soft Connector

Type: PT-S1-630

Product Introduction

The fully shielded 3T soft cable connector features a European cable end on one side and an American style Elbow type fully shielded soft cable on the other. After installation, an earthing wire is added to achieve complete shielding and sealing. The product offers flexible bending capability, and the cable length can be customized for optimal installation solutions.
