1250A / 2500A / 3150A MV Switchgear 17.5KV 31.5kA Metal Enclosed Switchgear

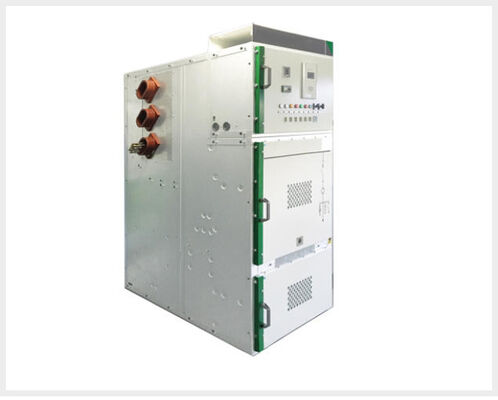

Large Image : 1250A / 2500A / 3150A MV Switchgear 17.5KV 31.5kA Metal Enclosed Switchgear

Product Details:

Brand Name:	MacweyTEK
Certification:	IEC, GB1984
Model Number:	KYN28-17.5kV

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3000
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	2500 pcs

Contact Now Chat Now

Detailed Product Description

Name:	MV Switchgear	Rated Voltage:	17.5kV
Rated Frequency:	50/60Hz	Rated Current:	1250/2500/3150A
Rated Short Circuit Withstand Current:	31.5kA/3s	Key Features:	Reliability,Simplicity,Safety
Highlight:	1250A MV Switchgear , 3150A MV Switchgear , 31.5kA Metal Enclosed Switchgear

KYN28-17.5KV MV Switchgear with 31.5kA Short Circuit Withstand Current and 1250/2500/3150A Rated Current for High Voltage Distribution

The KYN28-17.5kV is an indoor, metal-enclosed switchgear designed for medium voltage applications in HV/MV and MV/MV substations. This robust electrical distribution equipment comprises cubicles with breaking devices, sensors, medium voltage connections, and auxiliaries.

Key Features

Reliability

Type tested for each performance level according to IEC 62271.100 & IEC62271.200 standards. Features three-dimensional computer modeling for electrical field analysis.
Simplicity

User-friendly interface with safety interlocks and padlocks. Includes protection units for on-site information retrieval and requires only simple preventive maintenance every 5-10 years. Easy installation with uniform dimensions for all cubicles.
Safety

Front-mounted mechanical earthing switch indication with interlocked access. VCB racking only possible with door closed. Includes power-on indicator and earthing switch with making capacity. Optional remote operation and internal arc withstand protection.

Technical Specifications

Parameter	Value
Rated Voltage	17.5kV
Rated Frequency	50/60Hz
Rated Current	1250/2500/3150A
Rated Short Circuit Withstand Current	31.5kA/3s
