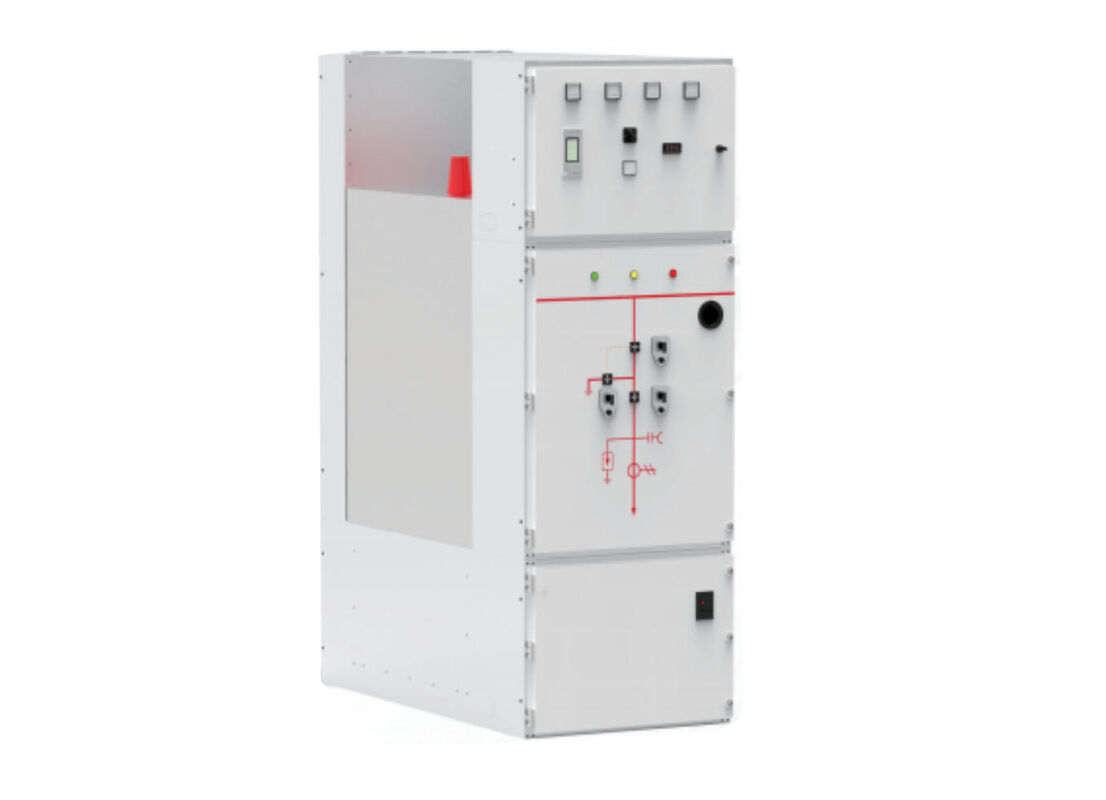

MCXF-40.5 series SF6 gas insulated metal enclosed switchgear (C-GIS)

MCXF-40.5 series SF6 gas insulated metal enclosed switchgear (C-GIS)

Product Overview

MCXE-12/24 Eco-friendly Gas lnsulated Metal Enclosed Switchgear (C-GlS) are independently developed by our company. This series of products meets market demand and can use eco-friendly gas insulation or SF6 as the insulation medium for metal enclosed switchgear (C-GlS) to meet the needs of different customers.

The MCXE-12/24 series switchgear has very high safety and reliability, which can ensure the continuous and stable operation of the power system and the personal safety of operators. At the same time, it also has a user-friendly operating interface, making it easy for on-site operators to operate. Rated voltage 12/24kV, rated current 630~3150A, rated breaking current 25~40kA.

MCXE-12, 24 series switchgear adopts modern and innovative switchgear design concept, with a variety of functional modules to choose from. Commonly used functional modules are L, F, D, R, P, M, etc. Other modules can be customized according to the requirements of the primary system diagram when necessary. These functional modules can be installed on-site. Routine tests are carried out on all modules prior to shipment. No special tools are required to install these devices.

Product Features

Parameters

	Rated voltage		kv	12	24
	Rated current		A	630, 1250, 2500, 3150
3	Rated frequency		HZ	50
4	Rated power frequency withstand voltage(1min)	Phase-to-phase and Phase-to-ground	kv	42	65
		lsolation fracture	kv	48	79
5	Rated lightning impulse voltage (1.2/50ms)	Phase-to-phase and Phase-to-ground	kv	75	125
		Fracture	kv	85	145
	Main circuit temperature rise		A	1.1*Ir
	Rated short-time breaking current		KA	25, 31.5, 40
	Rated short-circuit closing current		KA	63, 80, 100
	Rated short-time withstand current		KA	25, 31.5, 40
	Rated peak withstand current		KA	63, 80, 100
	Rated pressure	Minimum functional pressure	MPa	0.03/ 0
	Gas tank protection rating		/	IP67
	Shell protection rating		/	IP4X
	Rated operating voltage		v	DC48, DC110, DC220
	Rated auxiliary voltage		V	AC220
	Overall dimensions (W★D★H)		mm	600*1250*2250 (1250A)
				800*1600*2250 (2500A)
				900*1600*2250 (3150A)
