MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT

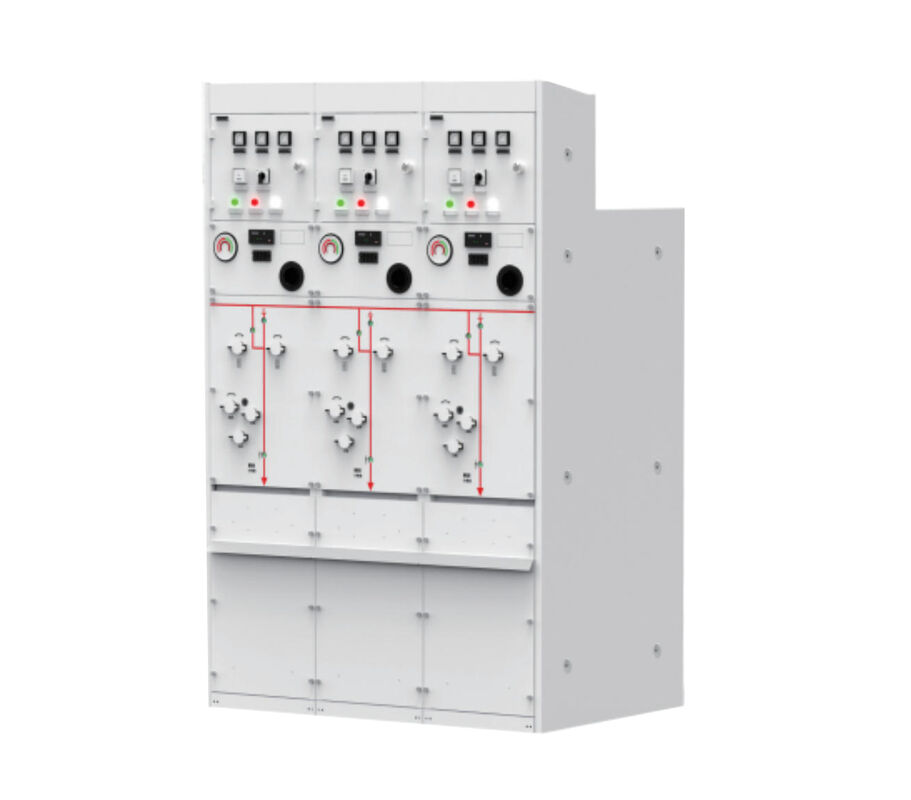

Large Image : MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT

Product Details:

Brand Name:	MacweyTek
Certification:	IEC
Model Number:	MEFG-12

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$800
Packaging Details:	Wooden case
Delivery Time:	12 working days
Payment Terms:	Western Union, T/T, L/C

Contact Now Chat Now

Detailed Product Description

MEFG-12 ECO-FRIENDLY GAS INSULATED RING MAIN UNIT

The MEFG series eco-friendly gas ring main unit is a gas switchgear independently developed by Macwey Technology. It uses a safe and eco-friendly mixed gas instead of SF6 as the insulation medium in the gas box to solve the problem of SF6 gas leakage pollution. It has a high level of operational safety and is used as the core unit in the distribution network.

Product Features

* Eco-friendly

* Maintenance Free

* Higher Reliability and Security

* No Partition/Solid Seal Design

Technical Data

Model NO.

MEFG-12

Voltage Level

High Voltage

Installation

Removable

Structure

Floorstanding

Current

Rated Frequency

50Hz / 60Hz

Rated Current

630A / 1250A

Rated Short-Circuit Breaking Current

20ka / 25ka

Rated Short-Time Withstand Current

20ka / 25ka (4s)

Rated Peak Withstand Current

50ka / 63ka

Insulation Medium

clear air

Protection Class

Gas Tank IP67, Cabinet Body IP4X

Ambient Temperature

-40℃ ~ +40℃

Altitude

≤ 2000m

Control Voltage

AC/DC 220V

Mechanical Life

≥ 10, 000

Transport Package

Standard Export Wooden Box with Pallet

Specification

customized

Trademark

MacweyTEK

Origin

Ningbo, China

HS Code

8537209000

Production Capacity
