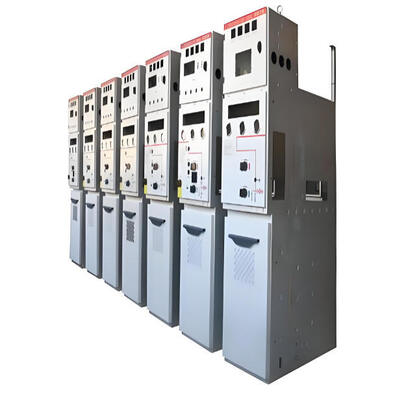

IP67 Protection Grade 12kv Switchgear Built to IEC 62271-200 ANSI Standards Delivering Performance in Electrical Networks

Product Description:

The MV Switchgear is a state-of-the-art Gas Insulated Metal Enclosed Switchgear designed to meet the demanding requirements of modern electrical distribution systems. Engineered with a modular design, this switchgear offers unparalleled flexibility and scalability, making it an ideal solution for various industrial, commercial, and utility applications. The modular architecture allows for easy customization and expansion, enabling users to tailor the system to their specific needs without compromising performance or reliability.
One of the standout features of this MV Switchgear is its superior protection grade. It is available with protection ratings of IP67 and IP4X, ensuring robust resistance against dust, water, and other environmental factors. This high level of protection guarantees the switchgear's durability and long-term operational stability, even in the harshest conditions. Whether installed indoors or outdoors, the MV Switchgear maintains optimal performance, safeguarding critical electrical infrastructure from potential damage caused by external elements.
The switchgear is rated for a current of 630A, with options to accommodate currents of 630A and 1250A. This versatility makes it suitable for a wide range of applications, from medium-sized industrial plants to large-scale power distribution networks. The ability to handle varying current ratings ensures that the switchgear can effectively manage electrical loads, providing reliable power distribution and minimizing the risk of outages or equipment failure.
In addition to its impressive current handling capabilities, the MV Switchgear boasts an exceptional short-circuit withstand capacity ranging from 25kA to 50kA. This high short-circuit rating is critical for protecting electrical systems against fault conditions, ensuring the safety of both equipment and personnel. The switchgear's robust construction and advanced design allow it to safely interrupt high fault currents, preventing damage and enhancing the overall stability of the power network.
As an SF6 switchgear, the MV Switchgear utilizes sulfur hexafluoride gas for insulation and arc quenching. SF6 switchgear is renowned for its compact design and excellent dielectric properties, which contribute to the reduced footprint and enhanced safety of the equipment. The use of SF6 gas ensures efficient insulation even under high voltage conditions, significantly improving the switchgear's operational reliability and lifespan. Moreover, the sealed gas compartment minimizes maintenance requirements and reduces the risk of environmental contamination.
The Gas Insulated Metal Enclosed Switchgear design also promotes ease of installation and maintenance. Its modular components can be quickly assembled or replaced, reducing downtime and operational costs. The switchgear's ergonomic design prioritizes user safety and convenience, providing clear access points for inspection, testing, and servicing.
In summary, the MV Switchgear offers a comprehensive solution for medium voltage power distribution with its modular design, high protection grades of IP67 and IP4X, and flexible current ratings of 630A and 1250A. Its outstanding short-circuit withstand capability of 25kA to 50kA ensures reliable protection against electrical faults. As an SF6 switchgear, it combines the benefits of gas insulation with metal enclosure robustness, delivering a compact, safe, and efficient switchgear system. Whether for new installations or upgrades, this Gas Insulated Metal Enclosed Switchgear represents a forward-thinking investment in the resilience and efficiency of electrical networks.

Features:

• Product Name: MV Switchgear
• Type: Air Switchgear, SF6 Insulated Switchgear
• Absolute Pressure: 1.4 bar
• Number of Poles: 3
• Current Ratings: 630A, 1250A
• Protection Class: IP4X
• Protection Degree: IP4X

Technical Parameters:

Applications:

The Macwey Technology MACO SF6 Insulated Switchgear, originating from China, is a versatile and reliable solution designed to meet the rigorous demands of modern electrical distribution systems. With a rated current of 630A and a robust three-pole configuration, this 12kv switchgear is engineered to deliver exceptional performance in both indoor and outdoor installation environments. Its compliance with international standards IEC 62271-200 and ANSI ensures that it adheres to the highest safety and quality benchmarks, making it an ideal choice for a wide range of applications.
This 12kv switchgear is particularly suited for use in urban and rural power distribution networks where reliability and safety are paramount. It is commonly employed in substations to control, protect, and isolate electrical equipment, thereby enhancing the stability and efficiency of the power supply. The SF6 insulated design provides superior insulation and arc-quenching capabilities, reducing maintenance requirements and extending the service life of the switchgear.
In industrial settings, the MACO switchgear is invaluable for managing electrical loads in manufacturing plants, processing facilities, and large commercial complexes. Its adaptable installation types—both indoor and outdoor—allow for flexible deployment in diverse environments, including harsh weather conditions. The switchgear's weight, ranging from 500kg to 3000kg depending on configuration, reflects its sturdy construction and durability, ensuring reliable operation under heavy-duty use.
Additionally, the Macwey Technology MACO SF6 Insulated Switchgear is ideal for integration into renewable energy projects such as wind farms and solar power stations, where stable and safe power distribution is critical. It can also be utilized in transportation infrastructure, including railway electrification systems and airport power grids, where continuous and secure electrical management is necessary.
Overall, the MACO model from Macwey Technology represents a state-of-the-art 12kv switchgear solution that caters to a broad spectrum of application occasions and scenarios. Its advanced SF6 insulation technology, compliance with international standards, and adaptable installation options make it a dependable choice for utilities, industries, and infrastructure projects that demand high-performance electrical switchgear.

Support and Services:

Our MV Switchgear product is backed by comprehensive technical support and services designed to ensure optimal performance and reliability. We provide expert consultation during the installation phase to guarantee correct setup and integration with your existing systems. Our technical support team is available to assist with troubleshooting, maintenance guidance, and operational training to empower your staff with the necessary knowledge for safe and efficient use.
We offer routine maintenance services to help extend the lifespan of your MV Switchgear, including inspections, testing, and preventive repairs. Should any issues arise, our rapid response team is equipped to provide timely diagnostics and repair solutions to minimize downtime. Additionally, we provide software updates and upgrades to keep your switchgear up-to-date with the latest technological advancements.
Customized service agreements are available to meet your specific operational requirements, including remote monitoring and support options. Our commitment is to deliver reliable, expert support throughout the lifecycle of your MV Switchgear, ensuring continuous protection and performance of your electrical distribution system.
