33kv / 36kv SF6 Insulated Switchgear 2500A SF6 Gas Switchgear With 56 Nationally Authorized Patents

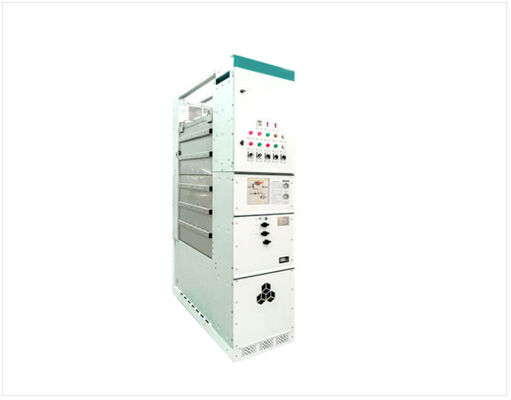

Large Image : 33kv / 36kv SF6 Insulated Switchgear 2500A SF6 Gas Switchgear With 56 Nationally Authorized Patents

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	MGH-36

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000
Packaging Details:	wooden case
Delivery Time:	25 days
Payment Terms:	T/T
Supply Ability:	2000

Contact Now Chat Now

Detailed Product Description

Name:	SF6 Insulated Switchgear	Rated Voltage:	12/24/36/40.5kV
Rated Frequency:	50/60Hz	Rated Current:	1250/2500A
Rated Short Circuit Withstand Current:	31.5kA	Key Features:	Reliable Performance
Highlight:	33kv SF6 Insulated Switchgear , 36kv SF6 Insulated Switchgear , 2500A SF6 Gas Switchgear

MGH High Voltage SF6 Gas Insulated Switchgear C-GIS 33kv/36kv 2500A with 56 Nationally Authorized Patents

The MGH-40.5 is a gas-insulated switchgear designed for medium voltage applications up to 40.5kV, ideal for primary distribution networks. This system supports both transformer protection and line protection configurations.

Featuring a compact design with exceptional versatility, the MGH-40.5 offers easy installation and expandability, making it suitable for diverse applications including public power distribution, infrastructure projects, and renewable energy systems.

Key Features

Reliable Performance

Advanced computer simulation used in product development for insulation, temperature control, mechanical strength, sealing, and arcing performance
Rigorous testing ensures superior product quality and long-term reliability

Compact Solution

Space-saving design occupies just 16% of the space required by conventional AIS products

Advanced Technology

Developed in collaboration with German technical experts
Features independent intellectual property rights
Incorporates 56 nationally authorized patents, including 4 invention patents

Technical Specifications

Parameter	Value
Rated Voltage	12/24/36/40.5kV
Rated Frequency	50/60Hz
Rated Current	1250/2500A
Rated Short Circuit Withstand Current	31.5kA
