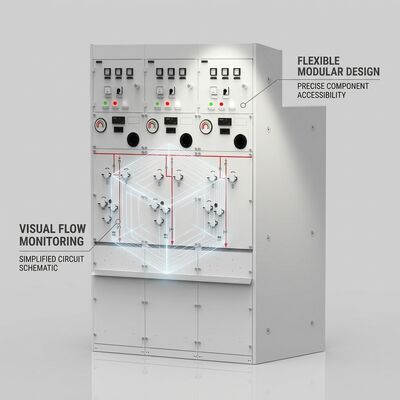

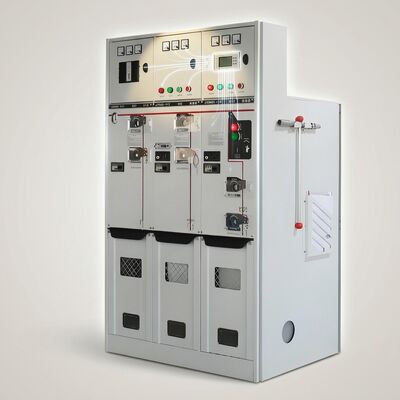

Dry Air Insulated RMU Ring Main Unit 12kV IP67 Switchgear for Urban Power Distribution Networks

The Dry Air Insulated RMU Ring Main Unit is a 12kV medium-voltage switchgear engineered for modern urban power distribution, industrial parks and commercial building electrical networks. Rated IP67 and built to IEC 62271-200 and ANSI standards, this switchgear replaces sulfur hexafluoride gas with dehumidified dry air as its primary insulating and arc-extinguishing medium, giving operators a cleaner, safer and lower-carbon primary distribution solution.

As a factory-direct dry air insulated RMU, every unit is assembled, pressure-tested and routine-tested before shipment. Engineers who specify this IP67 switchgear within an electrical network benefit from a positive-pressure sealed enclosure that keeps dust, salt spray and insects away from live parts, while the simplified insulation system lowers long-term operating and maintenance costs. Because dry air is chemically stable, the ring main unit does not corrode internal metal components and needs no gas recycling or leak-repair programme.

• IP67 sealed protection: the enclosure shields the 12kV switchgear against dust and water ingress, supporting reliable operation in coastal and high-humidity electrical networks.
• SF6-free, eco-friendly design: dry air insulation with GWP = 0 and ODP = 0 removes greenhouse-gas risk and simplifies end-of-life handling of the ring main unit.
• IEC 62271-200 and ANSI compliant: type-tested construction gives utilities and EPC contractors a globally recognised switchgear platform.
• Low maintenance: servicing is limited to periodic air-pressure checks and replenishment, far simpler than continuous SF6 gas monitoring.

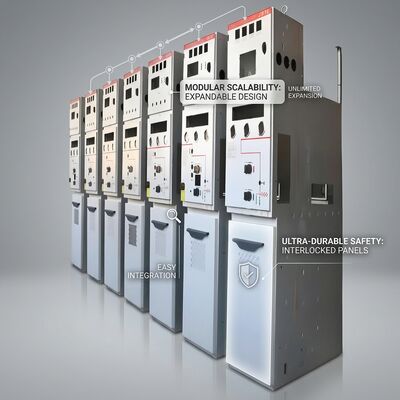

• Modular and compact: the modular design shortens installation time and allows flexible extension of the RMU inside tight urban substations.
• High short-circuit withstand: 25kA to 50kA capability protects downstream equipment across demanding electrical networks.

• Urban power distribution networks and secondary substations, where a compact 12kV ring main unit saves valuable floor space.
• Industrial parks and manufacturing plants that require a rugged IP67 switchgear for continuous electrical networks.
• Commercial buildings, hospitals and data centres that demand a safe, low-maintenance dry air insulated RMU.
• Wind, solar and energy-storage projects needing an SF6-free switchgear aligned with green procurement policy.
• Coastal, mining and high-dust sites where the sealed RMU resists salt spray, humidity and airborne contamination.

Q1: What does the IP67 rating mean for this switchgear?
IP67 confirms that the enclosure is dust-tight and protected against temporary water immersion, so this 12kV switchgear keeps operating reliably in coastal, humid or dusty electrical networks without internal contamination.

Q2: Is this ring main unit genuinely SF6-free?
Yes. The dry air insulated RMU uses dehumidified dry air as its insulating and arc-extinguishing medium, eliminating SF6 purchase, recycling and leak-repair costs.

Q3: Does the RMU comply with IEC 62271-200 and ANSI?
The switchgear is built and type-tested to IEC 62271-200 and ANSI standards, giving utilities and EPC contractors a globally accepted platform for primary distribution.

Q4: How much maintenance does the dry air insulated RMU need?
Because dry air is chemically stable, the ring main unit requires only periodic air-pressure checks and replenishment, roughly every two to three years, rather than continuous SF6 gas monitoring.

Q5: Can this 12kV switchgear be installed outdoors?
With its IP67 sealed design and indoor or outdoor installation type, the switchgear suits both indoor substations and outdoor distribution points within demanding electrical networks.

Each dry air insulated RMU is packed in a reinforced wooden case and shipped with routine-test reports, a wiring diagram and an installation manual. Our factory performs dimensional checks, pressure tests and functional switching tests on every switchgear, and a dedicated technical team supports commissioning and after-sales service for overseas electrical networks. Sample orders and OEM branding of the ring main unit are welcome.
