Fully Sealing Ring Main Unit Components Back T Plug Connector With Soft Connection Transformer PT

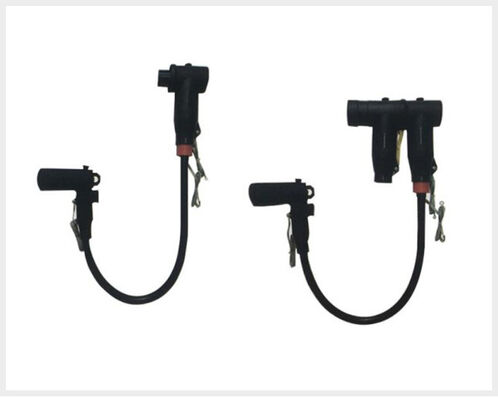

Large Image : Fully Sealing Ring Main Unit Components Back T Plug Connector With Soft Connection Transformer PT

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	Type: PT-FS1-630

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$25
Packaging Details:	carton & pallet
Delivery Time:	16 days
Payment Terms:	T/T
Supply Ability:	10000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	Ring Main Unit Components	Rated Current:	630A
Structure:	3T Fully Shielded	Performance:	Full Sealing & Shielding
Connector Ends:	Euro Back Plug + PT Soft Connection	Application:	GIS Switchgear
Highlight:	Fully Sealing Ring Main Unit Components , Back T Plug Connector , Fully Sealing T Plug Connector

630 European Type Fully Sealing Back Plug Connector with Soft Connection Transformer PT for GIS Switchgear

Product Introduction

The Back Plug Fully Shielded 3T Cable Soft Connector features a main end with shielding 630 European type back cable connector and another end with soft connection transformer PT with full shielding. This design ensures complete product sealing and shielding for optimal performance in GIS switchgear applications.
