50Hz SM6 Switchgear 75KV / 85KV MV Ring Main Unit For High And Medium Voltage

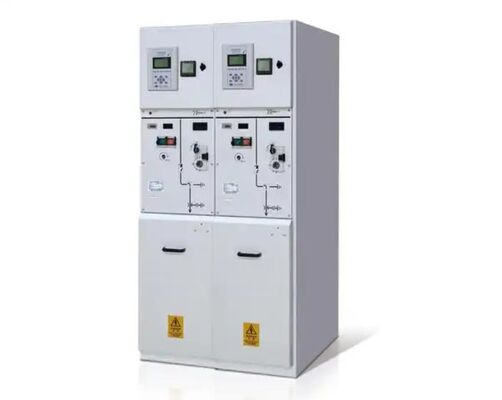

Large Image : 50Hz SM6 Switchgear 75KV / 85KV MV Ring Main Unit For High And Medium Voltage

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	SM6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000
Packaging Details:	wooden case
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	2000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	SM6 Switchgear	Product Model:	SM6
Protection Grade:	IP67	Absolute Pressure:	1.4bar
Rated Current:	630A	Frequency:	50Hz
Highlight:	50Hz SM6 Switchgear , SM6 Switchgear 75KV , 85KV MV Ring Main Unit

SM6 RMU Ring Main Unit with 50Hz Frequency and 75/85KV Power Frequency Withstand Voltage for High and Medium Voltage Applications

With Circuit Breaker and Load Break Switch

Product Overview

All live parts of the gas insulation switchgear are enclosed in a stainless steel housing, making the entire switchgear unaffected by external environmental conditions. This design ensures reliable operation, personal safety, and maintenance-free performance. By selecting an extended busbar, any combination can be achieved to realize full modularity. The extended busbar is completely insulated and shielded, offering high reliability and safety.

Product Features

Indoor type consists of functional units C, E, V, and D with freely selectable combinations
Air cabinet uses SF6 gas as arc distinguishing and insulating medium
Fully sealed and insulated switch cabinet structure
Cavity filled with SF6 gas under absolute pressure of 1.4bar
Protection grade of IP67

Technical Specifications

Item	Unit	RMU	Load switch unit	Lead switch unit (V)	Load switch unit (F)
Rated voltage	KV	12	12	12	12
Rated current	A	630	630	630	630
Frequency	Hz	50	50	50	50
Rated short circuit breaking current	KA	/	/	20
Rated short circuit losing current	KA	/	50	50	/
Rated thermal stability current	KA	20	20	20	/
Rated thermal stability time	s	4	3	3	/
Rated short circuit breaking current (fuse)	KA	50	50	50
Rated transfer current	KA	/	/	20	7
Lightning impulse voltage	s	/			31.5
1min power frequency withstand voltage	KV	75/85	75/85	75/85	1700
SF6 gas pressure (relative pressure 0℃)	KV	42/48	42/48	42/48	75/85
Annual leaking rate	Mpa	0.04			42/48
Internal combustion arc test	%	<0.5
Air chamber protection grade	KA/s	20-0.5
Switch cabinet protection grade		IP67
Shell protection grade		IP3X IP33
