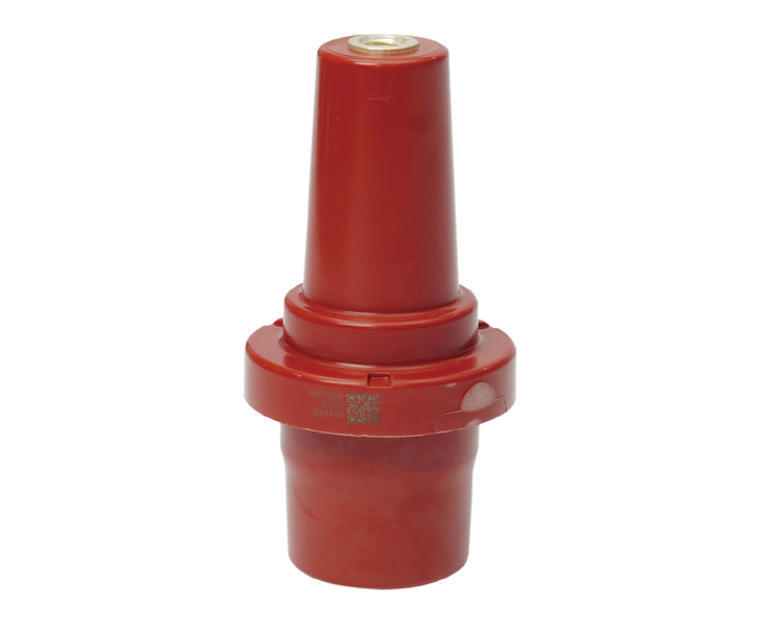

12KV Gas Insulated Bushing Integrated Epoxy Resin Bushing 630A With SF6 Switchgear

Large Image : 12KV Gas Insulated Bushing Integrated Epoxy Resin Bushing 630A With SF6 Switchgear

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	6GDEP.181

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$10
Packaging Details:	cartons
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	10000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Gas Insulated Bushing	Rated Voltage:	12/24kV
Rated Current:	630/1250A	Dimension:	181mm
Power-frequency Withstand Voltage:	48 / 65 KV/1min	Partial Discharge:	≤ 5 PC
Highlight:	12KV Gas Insulated Bushing , Integrated Epoxy Resin Bushing , Epoxy Resin Bushing 630A

12/630 12KV Epoxy Resin Integrated Insulated Bushing for Cable Branch Cabinet with SF6 Switchgear

12KV Epoxy Resin Integrated Insulated Dead Break Bushing designed for cable branch cabinets with SF6 switches, ensuring reliable insulation in high voltage switchgear. Its umbrella skirt structure increases creepage distance, enhancing electrical performance and safety. Certified with CE, it ensures compliance with EU safety standards, providing market access assurance.

Supplier Highlights: Manufacturer and trader offering full customization options including design and sample customization. All products are certified with 100% customer satisfaction.

Technical Specifications

Parameter	Value
Rated Voltage	12/24kV
Rated Current	630/1250A
Dimension	181mm
Power-frequency Withstand Voltage	48 / 65 kV/1min
Partial Discharge	≤ 5 pC
Inductive Capacitance	18+3 pF

Key Features

Designed for cable branch cabinets with SF6 switches
Epoxy resin integrated insulation for high reliability
Umbrella skirt structure for increased creepage distance
Enhanced electrical performance and safety
CE certified for EU market compliance

Overall Dimensions

12KV Gas Insulated Bushing Integrated Epoxy Resin Bushing 630A With SF6 Switchgear 0
