200A - 4000A LV Circuit Breaker Drawer Type Frame Circuit Breaker

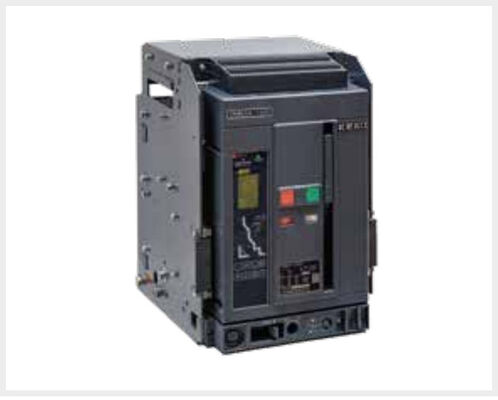

Large Image : 200A - 4000A LV Circuit Breaker Drawer Type Frame Circuit Breaker

Product Details:

Place of Origin:	China
Brand Name:	Macwey Tek
Certification:	lEC 60947-2
Model Number:	MKW65A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1000
Packaging Details:	Wooden Case
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	2000 pcs

Contact Now Chat Now

Detailed Product Description

Rated Current:

200A-4000A

Working Voltage:

AC 400v, 690V & 1140V

Number Poles:

3 Poles Or 4 Poles

Name:

Highlight:

200A LV Circuit Breaker

4000A LV Circuit Breaker

Drawer Type Frame Circuit Breaker

Schneider MKW65A ACB Frame Circuit Breaker 200A-4000A Drawer Type

Product Specifications

Attribute	Value
Rated Current	200A-4000A
Working Voltage	AC 400V, 690V & 1140V
Number of Poles	3 poles or 4 poles

Product Description

The MKW65A series intelligent air circuit breaker is designed for power distribution networks with AC 50/60Hz, rated working voltage of AC 400V, 690V & 1140V and rated working current of 200A~4000A. It provides reliable power distribution and circuit protection against overload, short circuit, under-voltage, and earth leakage faults.

Key Features

Intelligent protection with communication capabilities
Selective protection between upper and lower levels
Improves power supply reliability and prevents unnecessary power failure
Includes isolation function
Special CKW65A-1600M/2500M/3200M types for State Grid standardized cabinets
Complies with GB/T 14048.2 and IEC 60947-2 standards

Technical Data

Frame size Inm (A)	1600				2500			3200	4000
Frame size Inm (A)	Rated current In (A)				200, 400, 630, 800, 1000, 1250, 1600			630, 800, 1000, 1250, 1600, 2000, 2500	2000, 2500, 2900, 3200
Short-circuit breaking capacity level	M	H	S	M	H	M	M	H
Rated ultimate short-circuit breaking capacity Icu (kA) AC400V	42	65	70	65	85	66	85	125
Rated ultimate short-circuit breaking capacity Icu (kA) AC690V	35	50	/	/	65	/	75	85
Rated service short-circuit breaking capacity Icu (kA) AC400V	42	55	65	65	85	66	85	100
Rated short-time withstand current lcw (kA)/1s AC400V	42	50	55	65	85	66	85	100
Electrical life (times)	10000				8000			8000	6000
Mechanical life (times)	15000				10000			10000	10000
