Motorized Earthing Switch JN22B 40.5kV Ground Switch With 31.5kA Short Circuit Current

All Products

MV Switchgear (10)

Switchgear Accessories (14)

MV Circuit Breaker (18)

LV Circuit Breaker (10)

Circuit Breaker Accessories (20)

Load Break Switch (3)

MV Disconnect Switch (3)

Earthing Switch (8)

GIS Components (2)

RMU Components (17)

Vacuum Contactor (6)

CT PT Transformer (20)

High Voltage Insulator (22)

china Ningbo Macwey Industrial Technology Co.,Ltd certification

I'm Online Chat Now

Chat Now

Motorized Earthing Switch JN22B 40.5kV Ground Switch With 31.5kA Short Circuit Current

Large Image : Motorized Earthing Switch JN22B 40.5kV Ground Switch With 31.5kA Short Circuit Current

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	JN22B-40.5

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$100-$300
Packaging Details:	carton
Delivery Time:	8 days
Payment Terms:	T/T
Supply Ability:	1000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Earthing Switch	Rated Voltage:	40.5KV
Rated Short-time Withstand Current (4s):	31.5kA	Rated Short-circuit Making Current:	80kA
Rated Peak Withstand Current:	80kA	Phase-to-phase Distance:	300mm, 350mm, 400mm
Highlight:	Motorized Earthing Switch , JN22B Ground Switch , 40.5kV Ground Switch

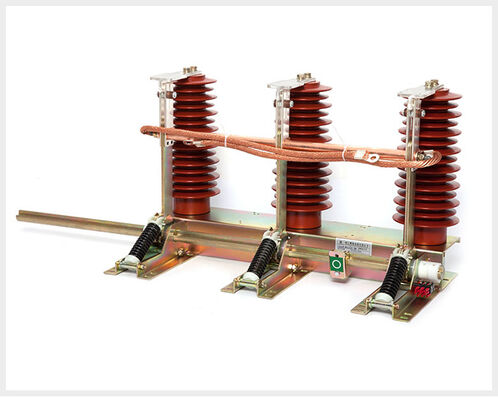

JN22B 40.5kV Motorized Earthing Switch with 31.5kA Short-Circuit Current and 300/350/400mm Phase-to-Phase Distance for High and Medium Voltage Switchgear

Indoor High and Medium Voltage Switchgear Earthing Switch

The JN22B-40.5/31.5 indoor high-voltage earthing switch is a newly developed product that meets GB1985-2004 and IEC62271-102:2002 standards. Designed for three-phase power systems with AC 50Hz and rated voltage 40.5kV, this switch serves as a ground protection device during maintenance of high-voltage electrical equipment.

This earthing switch features a simple, compact structure with excellent performance and requires minimal operating angle. It is compatible with KYN61-40.5 high-voltage switchgear and other similar equipment, with connection and transmission parts interchangeable with JN15-12 series.

Service Conditions

Maximum altitude: 1,000m
Ambient temperature range: -25℃ to +40℃
Seismic intensity: ≤Ms8
Installation site must be free from fire hazards, explosive danger, heavy dust, chemical corrosion, or severe vibration

Technical Specifications

Item	Unit	Data
Rated voltage	KV	40.5
Rated short-time withstand current (4s)	kA	31.5
Rated short-circuit making current	kA	80
Rated peak withstand current	kA	80
Phase-to-phase distance	mm	300, 350, 400
Rated short-time power frequency withstand voltage (1min)		95 kV (Phase-to-ground and phase-to-phase)
Rated lightning impulse withstand voltage		185 kV

Product Dimensions

Product model	E	L	D
JN22B-40.5/31.5-300	300	1100	696
JN22B-40.5/31.5-350	350	1150	796
JN22B-40.5/31.5-400	400	1200	896
