10kV Earthing Switch 50Hz 60Hz High Voltage Switches For KYN28 Switchgear

Large Image : 10kV Earthing Switch 50Hz 60Hz High Voltage Switches For KYN28 Switchgear

Product Details:

Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	DJN-15-12/24/36

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$150-$500
Packaging Details:	wooden case
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	3000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Name	Rated Voltage:	12KV 24KV 40.5KV
Rated Short Time Withstand Current:	31.5, 40kA	Rated Short Circuit Duration:	4s
Rated Peak Withstand Current:	80, 100kA	Key Features:	Simple Structure
Highlight:	10kV Earthing Switch , Earthing Switch 50Hz , 60Hz High Voltage Switches

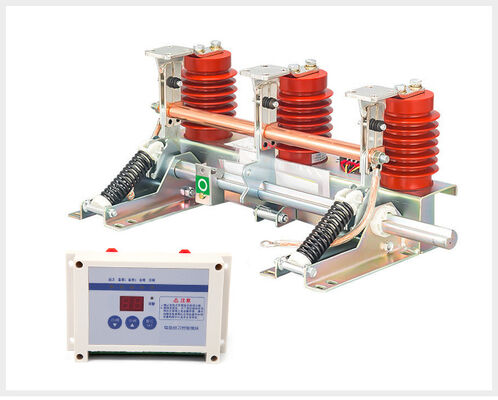

10kV 50(60)Hz Motorized Earthing Switch for KYN28 Switchgear with Three Phase High Voltage Grounding

The DJN15-12(24)/31.5, DJN17-12(24)/40/50, and DJN22B-40.5/31.5 series indoor high-voltage electric earthing switches are intelligent grounding solutions designed for smart grid applications. These programmable switches meet the requirements for unattended monitoring and remote control in modern power systems.

Suitable for 10~35kV three-phase AC 50(60)Hz indoor high-voltage switchgears, these devices serve as essential ground protection during maintenance of high-voltage electrical equipment. The series has earned national invention patents and utility model patents for its innovative design.

Key Features

Intelligent control via SCM or PLC programming with computer interface compatibility
Simple structure for easy installation and maintenance
Stable performance with extended operational lifespan
Maintains "five preventions" interlock functionality without modification
Compatible with existing manual earthing switch interlock systems
High intelligence for smart grid integration

Technical Specifications

Item	Unit	12kV Data	24kV Data	40.5kV Data
Rated voltage	kV	12	24	40.5
Rated short time withstand current	kA	31.5, 40	31.5, 40	31.5
Rated short circuit duration	s	4	4	4
Rated peak withstand current	kA	80, 100	80, 100	80
Central distance between poles	mm	150,210,230,250,275	210,230,250,275	350,385,460
1 min PF withstand voltage	kV	42/49	50/60	95
Lightning impulse withstand voltage	kV	75/85	125/145	185
