1P 2P 3P 4P Miniature Circuit Breakers 16A 32A 10ka MCCB Circuit Breakers

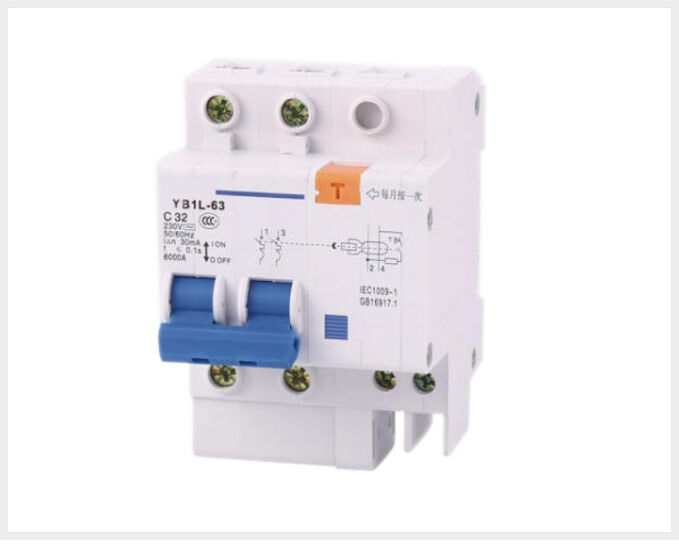

Large Image : 1P 2P 3P 4P Miniature Circuit Breakers 16A 32A 10ka MCCB Circuit Breakers

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	CE, CCC
Model Number:	YB1L-63

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$5
Packaging Details:	cartons
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	100000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Name	Voltage:	230/400V
Rated Fame Current:	63A	Wide Current Range:	3A To 63A
Multiple Pole Configurations:	1P 2P 3P 4P	Breaking Capacity:	10ka
Highlight:	3P Miniature Circuit Breakers , 4P Miniature Circuit Breakers , 16A MCCB Circuit Breakers

1P 2P 3P 4P Miniature Circuit Breaker MCB with 16 Amp 32A and 10ka Breaking Capacity for Home Use

The YB1L-63 series residual current circuit breaker is designed for AC 50Hz/60Hz lines with rated voltage 400V (230V for single phase) and rated current from 3A to 63A. It provides comprehensive protection including leakage and electric shock prevention, overload, and short circuit protection. Optional over voltage protection can be added for enhanced safety.

This circuit breaker serves as protection against personal electric shock (with 30mA rated residual operating current) and safeguards equipment from damage caused by leakage current. It can also function as an infrequent circuit breaker for breaking and switching operations.

Complies with standards: GB/T16917.1, GB/T16917.22, IEC61009-1, IEC61009-2-2.

Technical Specifications

Voltage (V)	Rated fame Current lnm (A)	NO.ofpoles	Neutral line	Rated current In (A)	Rated residual operating current I△no (mA)	Rated residual non-operating current I△no (mA)	Rated residualCurrent operation time (s)	Overcurrent release
230	63	1	+N	3,6,10,16 20,35,32, 40,50,63	30,(50) (100),(300)	15,(25)(50) (150)	<0.1	C is for power distribution (conventional) D is for motor protection
230/400	63	2
230/400	63	3	+N
230/400	63	3
230/400	63	4

Key Features

Multiple pole configurations available (1P, 2P, 3P, 4P)
Wide current range from 3A to 63A
10kA breaking capacity
Fast response time (<0.1s)
Dual protection types (C for power distribution, D for motor protection)
Adjustable residual current settings (30mA to 300mA)
Suitable for both residential and industrial applications
