12KV 24KV SF6 Gas Switch Indoor Medium Voltage Switch For RMU Ring Main Unit

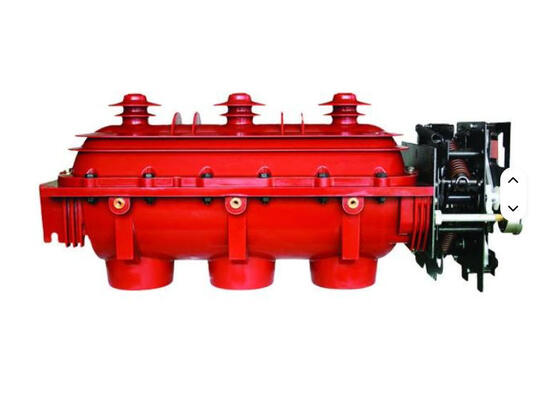

Large Image : 12KV 24KV SF6 Gas Switch Indoor Medium Voltage Switch For RMU Ring Main Unit

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	FLN36-12 630A

Contact Now Chat Now

Detailed Product Description

Name:	SF6 Gas Switch	Rated Voltage:	12KV, 24KV
Rated Current:	630A	Application:	Indoor High Voltage Electrical Distribution
Insulation Medium:	SF6 Gas (0.05Mpa)	Construction:	Reinforced Epoxy Resin Shell
Highlight:	12KV SF6 Gas Switch , 24KV SF6 Gas Switch , Indoor Medium Voltage Switch

SF6 Gas Insulated Load Break Switch with 12KV Rated Voltage for Indoor Installation

Power Distribution Equipment for RMU Ring Main Unit

The FLN36-12 load breaker switch is a door-type medium voltage switchgear with multiple functions, featuring three working states: closed, open, and grounded. Its fully sealed, reinforced epoxy shell structure is filled with SF6 gas (0.05Mpa) for superior arc extinguishing and insulation.

Key Features

Fully sealed epoxy resin construction with SF6 gas insulation
Three-position functionality (closed, open, grounded)
Main circuit encapsulated in epoxy resin for reliable conductivity
Minimal component design for enhanced reliability
Maintenance-free operation with safe, convenient handling

Technical Specifications

Parameter	Value
Model Number	FLN36-12
Rated Voltage	12KV, 24KV
Rated Current	630A
Application	Indoor high voltage electrical distribution
Insulation Medium	SF6 gas (0.05Mpa)
Construction	Reinforced epoxy resin shell
Color Options	Red, green, brown
Place of Origin	Zhejiang, China
Shipping Port	Ningbo or Shanghai

Applications

Designed for indoor installation in high voltage power distribution systems, particularly suitable for RMU (Ring Main Unit) applications where reliable load breaking capability is essential.
