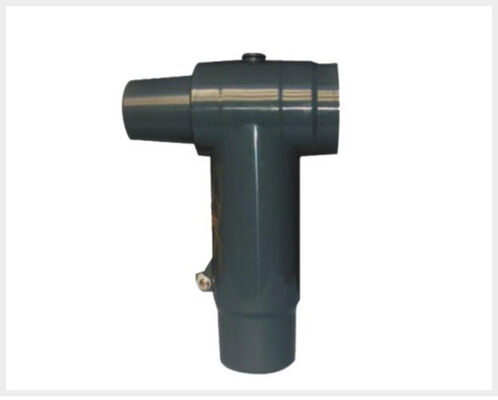

8.7kv / 15kv Shielded High Voltage Cable Front Rear T Type Cable Connector

Large Image : 8.7kv / 15kv Shielded High Voltage Cable Front Rear T Type Cable Connector

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	HT-15KV / 630A

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$15
Packaging Details:	carton
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	20000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	Shielded High Voltage Cable	Rated Voltage:	8.7kv / 15kv
Rated Current:	630A	Dynamic Short Circuit Current (10s):	80.8kA
Cable Cross-section:	25-400 Mm2	Power Frequency Withstand Voltage:	39/5 KV/min
Highlight:	8.7kv Shielded High Voltage Cable , 15kv Shielded High Voltage Cable , Front Rear T Type Cable Connector

8.7kv / 15kv Shielding Front Rear Cable Connector with 630A Rating for High Voltage Applications

Product Description

High Quality 8.7kv / 15kv Shielding Front Rear Cable Connector Screen Front Rear Elbow Plug Connector

Type:

HT-15KV / 630A front joint

Application

Non-Shielded front/rear connector can be used in cable branch box, ring main unit, box transformer substation, etc., guaranteed that the product can be multi-branch power supplied.
Applicable to fully enclosed connection to Φ46 / Φ56 / Φ91.5 / M16
For 8.7/15kv, 12/20kv crosslinked cables, cable cross-section 25-400mm²

Product Features

Product frequency withstand voltage and partial discharge are higher than standard IEC60502 by 30%
Fully insulated, fully enclosed design
After connection of front and rear connectors, the center distance is only 100mm, meeting space requirements in gas type ring main units while minimizing cable branch box structure

Europe Style 630A Separable Connector Performance Parameters

Item	Unit	Parameter
Rated voltage	kV	8.7/15(17.5) \| 12/20(24) \| 18/30(36) \| 26/35(40.5)
Rated current	A	630 \| 630 \| 630 \| 630
Power frequency withstand voltage	kV/min	39/5 \| 54/5 \| 81/5 \| 117/5
Partial discharge	≤PC(kV)	≤10 (15) \| ≤10 (20) \| ≤10 (31) \| ≤10 (45)
Thermal short circuit	kA/s	22.8/2 \| 24/2 \| 23/2 \| 23/2
Dynamic short circuit current (10s)	kA	80.8 \| 84 \| 83 \| 83
Cable cross-section	mm²	25-400 \| 35-500 \| 50-630 \| 50-630
