15kV 630A T Type Cable Connector American Style For Ring Main Unit

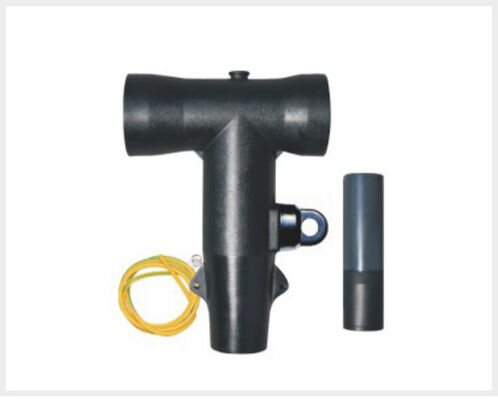

Large Image : 15kV 630A T Type Cable Connector American Style For Ring Main Unit

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	TT3-15/600

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$22
Packaging Details:	cartons
Delivery Time:	18 days
Payment Terms:	T/T
Supply Ability:	20000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	T Type Cable Connector	Rated Voltage:	15kV
Rated Current:	600A	Power Frequency Withstand Voltage:	39kV
Partial Discharge Of 15kV:	≤5pC	Thermostable Current:	30kA
Dynamic Stable Current:	110kA
Highlight:	15kV T Type Cable Connector , 630A T Type Cable Connector , 15kV T Cable Connector

American Style 15kV 630A T Type Cable Connector for Ring Main Unit with 25mm² Cable Section

Type: TT3-15/600

The T-type / T-Ⅱ connector is designed for cable branch box main network systems or as incoming/outgoing cable connectors for ring network cabinets. It connects with 600A high-voltage sleeves and multiple sockets, or with 600A bus sleeves and elbow plugs to create multiple cable branches. Features built-in electroscope with rated current of 600A, suitable for cable sections 25-400mm², and compatible with Φ40/medium 52/80/5/8" casings.

Product Features

Fully insulated, sealed, and shielded construction
Incorporates international advanced post-injection insulation technology for superior electrical performance and reliability
T-type II joint and elbow plug assembly is 30mm shorter than traditional structures, meeting ring network cabinet space requirements while enabling more compact cable branch box designs
2mm thick uniform outer shield layer with surface resistance <1000 Ω/cm
World's most advanced prefabricated cable connector technology

Performance Parameters

Parameter	Value
Rated voltage	15kV
Rated current	600A
Power frequency withstand voltage (5mins)	39kV
Partial discharge of 15kV	≤5pC
Thermostable current	30kA
Dynamic stable current (10ms)	110kA
