15kV RMU Components Single Pass RMU Bushing 200A With Detachable Connector

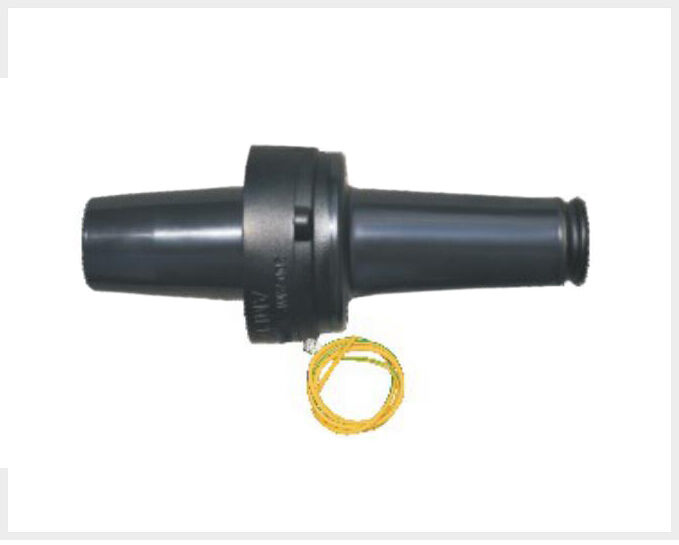

Large Image : 15kV RMU Components Single Pass RMU Bushing 200A With Detachable Connector

Product Details:

Place of Origin:	China
Brand Name:	Macweytek
Certification:	IEC
Model Number:	DJ-15/200

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$18
Packaging Details:	cartons
Delivery Time:	19 days
Payment Terms:	T/T
Supply Ability:	20000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	RMU Components	Rated Voltage:	15kV
Rated Current:	200A	Power Frequency Withstand Voltage:	39kV
Thermostable Current:	16kA	Dynamic Stable Current:	40kA
Highlight:	15kV RMU Components , Single Pass RMU Bushing , RMU Bushing 200A

American Style 200A Single-Pass Bushing for Ring Main Unit with Detachable Connector

Product Description

The American Style 15kV Single-Pass Bushing is designed for variable high-voltage incoming lines of box-type equipment and can also be used for high-voltage connections in ring cabinets. When installed, it tightly fits on the sleeves seat to provide a socket for elbow plugs with minimal contact resistance.

Type: DJ-15/200

American Type 200A Detachable Connector Performance Parameters

Parameter	Value
Rated voltage	15kV
Rated current	200A
Power frequency withstand voltage (5mins)	39kV
Partial discharge of 15kV	≤5pC
Thermostable current	16kA
Dynamic stable current (10ms)	40kA

American Application Standard for Detachable Connector

Tag:

Contact Person: Alec Sung

Tel: 0086-13625845635

Fax: 0086-574-88478873
