15kV 200A RMU Components Two Pass Bushing For Ring Cabinet RMU GIS

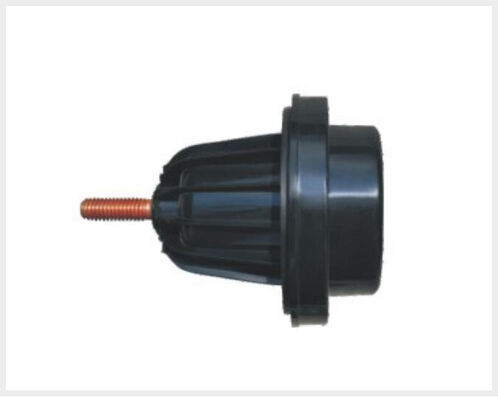

Large Image : 15kV 200A RMU Components Two Pass Bushing For Ring Cabinet RMU GIS

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	CZ-15/200

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	cartons
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	30000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	RMU Components	Rated Voltage:	15kV
Rated Current:	200A	Power Frequency Withstand Voltage:	39kV
Partial Discharge Of 15kV:	≤5pC	Thermostable Current:	16kA
Highlight:	15kV RMU Components , 200A RMU Components , Two Pass Bushing

American Style CZ-15/200 Two-Pass Bushing for Ring Cabinet RMU GIS Detachable Connector

The American Style 15kV Two-Pass Bushing is designed for Ring Cabinet applications, providing reliable connectivity for variable pressure lead wires in box installations. This product also facilitates high-pressure connections in ring network configurations.

Product Specifications

Type: CZ-15/200
Fixed to the box body using a pressure ring
Single-pass bushing inserts into the socket
Designed for transformer oil medium applications
Features special non-leakage structural technology
Excellent conductive performance

American Type 200A Detachable Connector Performance Parameters

Parameter	Value
Rated voltage	15kV
Rated current	200A
Power frequency withstand voltage (5mins)	39kV
Partial discharge of 15kV	≤5pC
Thermostable current	16kA
Dynamic stable current (10ms)	40kA
