15kV RMU Bushing Two Pass Insulation Bushing With Copper Forging and Torque-Limiting Construction

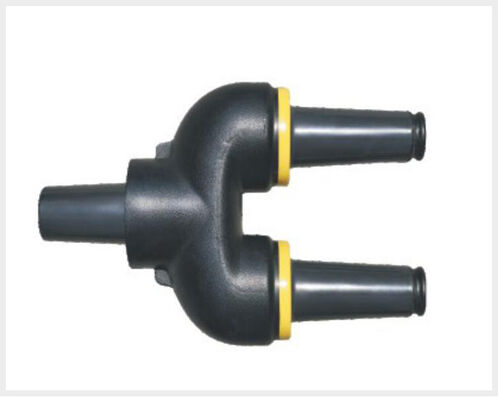

Large Image : 15kV RMU Bushing Two Pass Insulation Bushing With Copper Forging and Torque-Limiting Construction

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	ADG-15/200

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$20
Packaging Details:	cartons
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	20000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	RMU Bushing	Rated Voltage:	15kV
Rated Current:	200A	Power Frequency Withstand Voltage:	39kV
Thermostable Current:	16kA	Dynamic Stable Current:	40kA
Highlight:	15kV RMU Bushing , Two Pass Insulation Bushing , Insulation Bushing 15kV

American Style 15kV Two-Pass Insulation Bushing with Copper Forging and Torque-Limiting Construction for Ring Cabinet RMU

Product Description

Type: ADG-15/200

Designed for variable high-voltage lead-in line applications
Allows installation of elbow arrester for transformer system over-voltage protection
Enables conversion between box terminal and ring network connections
One-piece copper forging construction with conductive resistance 100μΩ lower than similar welded models
Torque-limiting construction prevents bolt breakage in sockets
Built-in insertion reinforcing design ensures 400N insertion/extraction force
Safe and reliable operation with secure connection

Performance Parameters

Parameter	Value
Rated voltage	15kV
Rated current	200A
Power frequency withstand voltage (5mins)	39kV
Partial discharge of 15kV	≤5pC
Thermostable current	16kA
Dynamic stable current (10ms)	40kA

Application Standard

American Type 200A Detachable Connector Standard
