Industrial AC Vacuum Contactor 2.5kA 1140V 250A Contactor For Industrial Applications

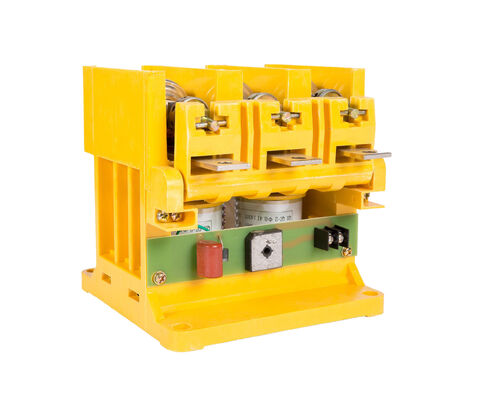

Large Image : Industrial AC Vacuum Contactor 2.5kA 1140V 250A Contactor For Industrial Applications

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	KVT

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$300
Packaging Details:	cartons
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	10000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	AC Vacuum Contactor	Rated Current:	160A, 250A, 400A, 630A
Rated Voltage:	1140V, 6-7.2kV, 10-12kV	Rated Breaking Current:	1.6kA, 2.5kA, 4kA, 6.3kA
Mechanical Life:	1,000,000 Cycles	Contact Configuration:	3NO+3NC
Highlight:	Industrial AC Vacuum Contactor , AC Vacuum Contactor 1140V , 1140V 250A Contactor

Vacuum Contactor VK49-1.14-2.5250 AC Contactor with 250A 2.5kA 1140V for Industrial Applications

High-performance vacuum contactor model VK49-1.14-2.5250 rated at 250A, 2.5kA breaking capacity, and 1140V operation.

Product Overview

This series contactor consists of an electrical insulating frame, metal base, shaft and crank arm, electromagnetic systems, permanent magnet, power modules, auxiliary switches, and vacuum interrupters.

Operating Principle

When control voltage is applied to the electromagnetic coil, the armature drives the crutch rotating to open the main contact in the vacuum interrupter. The auxiliary switch simultaneously cuts off power to the electromagnetic coil, transitioning to permanent-magnet maintenance. After power is interrupted by the control circuit, energy storage from the power module discharges to the electromagnetic coil for degaussing, and the main contact opens under the function of the opening spring.

Normal Operating Conditions

Environment temperature: -5°C to +40°C, with 24-hour average not exceeding +35°C
Altitude: No more than 1000m
Atmospheric conditions: Monthly highest humidity ≤90% in wettest month, monthly average minimum temperature 25°C
Impact vibration: Location without extensive shaking, impact, or vibration
No explosion hazards, enchant gas, or sleet
No rain and snow in installation area
Pollution degree: Grade 3
Installation type: III
Installation condition: Slant angle between installation surface and vertical surface ≤15°

Technical Specifications

KVT-6 Series (6-7.2kV)

Item	Unit	KVT-6-1.6/160	KVT-6-2.5/250	KVT-6-4/400	KVT-6-6.3/630
Contact Group	quantity	3+3p (3NO+3NC)
Main Circuit Rated Voltage	kV	6-7.2
Main Circuit Rated Current	A	160	250	400	630
Rated Breaking Current (Ics)	kA	1.6	2.5	4	6.3
Main Circuit Current Making Capacity	A/100 times	1600	2500	4000	6300
Main Circuit Make-Break Capacity	A/25 times	1280	2000	3200	5000
Maximum Breaking Capacity	A/3 times	3200	3200	4000	6300

KVT-10 Series (10-12kV)

Item	Unit	KVT-10-1.6/160	KVT-10-2.5/250	KVT-10-4/400	KVT-10-6.3/630
Contact Group	quantity	3+3p (3NO+3NC)
Main Circuit Rated Voltage	kV	10-12
Main Circuit Rated Current	A	160	250	400	630
Rated Breaking Current (Ics)	kA	1.6	2.5	4	6.3
Main Circuit Current Making Capacity	A/100 times	1600	2500	4000	6300
Main Circuit Make-Break Capacity	A/25 times	1280	2000	3200	5000
Maximum Breaking Capacity	A/3 times	3200	3200	4000	6300

General Specifications

Mechanical Life	times	1,000,000
Power Frequency Withstand Voltage (Main Circuit)	kV	32 (6kV series)	42 (10kV series)
Power Frequency Withstand Voltage (Auxiliary)	kV	2.5
Power Frequency Withstand Voltage (Control)	kV	2
Rated Operating Frequency	times/h	300
Opening Time	ms	≤120
Closing Time	ms	≤150
Clearance Between Open Contacts	mm	4±0.5 (6kV series)	5±0.5 (10kV series)
Over Travel	mm	≥1.2
Overall Dimensions (L×H×B)	mm	468×540×200
