110kV Long Rod Polymer Insulator 70kN 120kN Composite Suspension Insulator

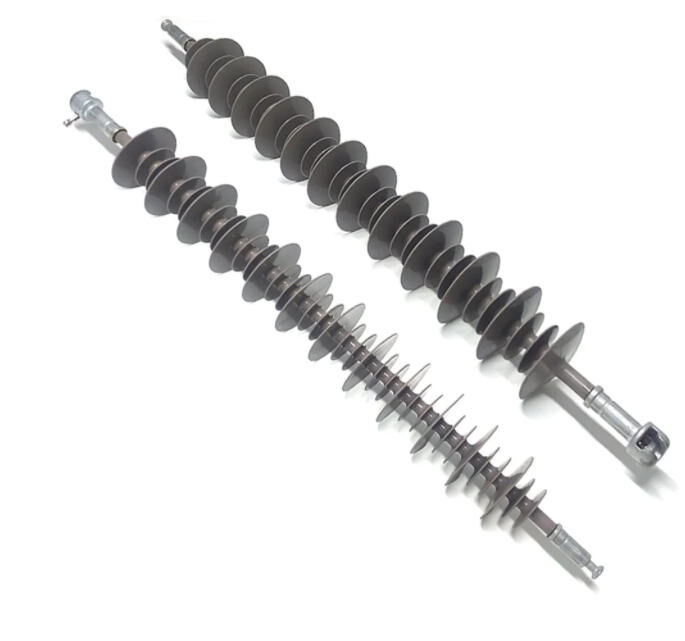

Large Image : 110kV Long Rod Polymer Insulator 70kN 120kN Composite Suspension Insulator

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	110kV

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$20
Packaging Details:	cartons
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	50000

Contact Now Chat Now

Detailed Product Description

Name:	Long Rod Polymer Insulator	Rated Voltage:	110kV
Mechanical Load:	70kN/120kN/160kN	Structure & Material:	Fiberglass Rod + Silicone Rubber Sheds + Polymer Housing
Certification:	ISO9001/ISO14001 Certified	Application:	110kV Power Transmission, New Lines & Grid Rehabilitation
Highlight:	110kV Long Rod Polymer Insulator , Long Rod Polymer Insulator 70kN , 120kN Composite Suspension Insulator

110kV Long Rod Polymer Composite Suspension Insulator with 70kN and 120kN Mechanical Load for High Voltage Power Transmission

ISO9001 and ISO14001 certified manufacturer offering premium quality 110kV long rod polymer composite suspension insulators at competitive prices.

Product Overview

Designed for 110kV power transmission systems, our long rod polymer suspension insulator provides exceptional electrical and mechanical reliability while significantly reducing line weight. The silicone rubber sheds maintain stable hydrophobicity, effectively resisting contamination and minimizing leakage current in humid or polluted environments.

Key Features

Robust fiberglass rod and polymer housing for durability in diverse climates and terrains
Available in standard mechanical loads: 70kN, 120kN, and 160kN
Custom fabrication available based on client specifications
Comprehensive selection of end fittings: ball-end, tongue, clevis, socket, eye, and Y-clevis
Compliant with IEC 61109 standards
Ideal for new line deployments and grid rehabilitation projects

Technical Specifications

Insulator Model	Rated Voltage (kV)	Rated Mechanical Tension Load (kN)	Coupling Size	Structure Height,H(mm)	Min Arcing Distance,h (mm)	Big Shed Diameter,d1 (mm)	Diameter of Grading Ring,D (mm)	Min Nominal Creepage Distance,L (mm)	Lightning Impulse Withstand Voltage (Peak Value),kV	Power Frequency Withstand Voltage Min,Wet, kV	Reference Weight (kg)
FXBW-110(70/100/120)	110	70/100/120	16	1240±15	1000	148	250	3150	550	230	4.9
FXBW-110(70/100/120)	110	70/100/120	16	1400±15	1165	148	250	3650	550	230	7.0
