24kV 25kV Silicone Rubber Insulator 110kN Polymer Suspension Insulators

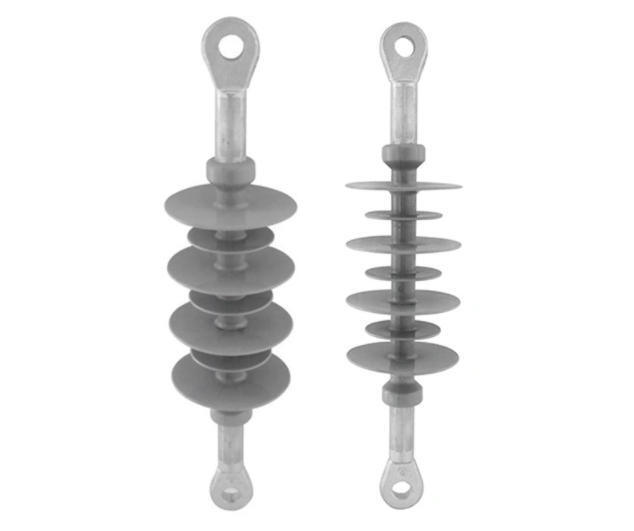

Large Image : 24kV 25kV Silicone Rubber Insulator 110kN Polymer Suspension Insulators

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	25kV

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	Silicone Rubber Insulator	Typical Line Voltage:	25 KV
Section Length:	430±10 Mm	Specified Mechanical Load:	110 KN
Routine Test Load:	55 KN	Dry Arcing Distance:	215 Mm
Highlight:	24kV Silicone Rubber Insulator , 25kV Silicone Rubber Insulator , 110kN Polymer Suspension Insulators

24kV 25kV 110kN Silicone Rubber Polymer Suspension Insulator with High-Strength Fiberglass Core

This 25kV polymer suspension insulator features tongue-type end fittings and a high-strength fiberglass core rated at 110kN. The silicone rubber sheds provide excellent hydrophobicity and environmental stress resistance, significantly reducing flashover risk.

Engineered for 25kV power distribution systems, this insulator delivers mechanical reliability and long-term stability. It complies with IEC 61109 standards and is manufactured under strict quality control. Custom designs are available based on your specifications.

25kV Polymer Suspension Insulator Technical Specifications (IEC 61109)

Parameter	Value
Typical Line Voltage	25 kV
Section Length	430±10 mm
Specified Mechanical Load (SML)	110 kN
Routine Test Load (RTL)	55 kN
Dry Arcing Distance	215 mm
Leakage Distance	585 mm
1min. Power Frequency Withstand Voltage (Wet)	50 kV
Lightning Impulse Withstand Voltage	90 kV
