70 kN - 100 kN High Voltage Insulator High Strength Suspension Polymer Insulator

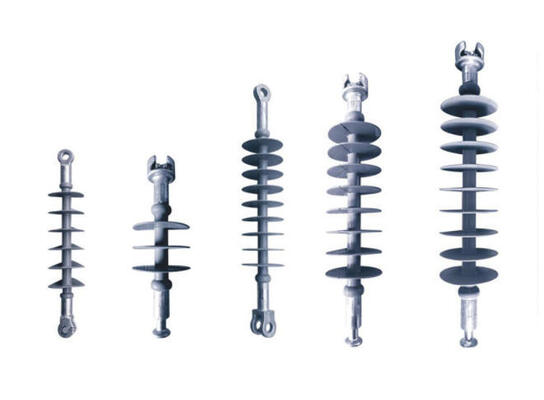

Large Image : 70 kN - 100 kN High Voltage Insulator High Strength Suspension Polymer Insulator

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	FBX/FBXW

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$8.5
Packaging Details:	wooden case
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	High Voltage Insulator	Mechanical Load:	70kN-100kN
Structure & Material:	Hydrophobic Silicone Rubber Sheds + FRP Core Rod + Hot-Dip Galvanized End Fittings	Core Feature:	Pollution/Corrosion Resistant, Lightweight, Extended Creepage Distance
Performance:	Excellent Mechanical & Electrical Properties	Application:	Overhead High-Tension Power Lines
Highlight:	70 kN High Voltage Insulator , 100 kN High Voltage Insulator , High Strength Suspension Polymer Insulator

70 kN to 100 kN High Strength Polymer Suspension Insulator for Overhead Lines with Silicone Rubber

Polymer suspension insulators are high-tension insulators with a capacity exceeding 70 kN. These premium insulators feature three key components: hydrophobic silicone rubber sheds, a high-strength epoxy resin glass fiber core rod, and hot-dip galvanized end fittings. Also known as silicone rubber insulators, they are engineered for demanding electrical applications.

Key Advantages

Lightweight construction for easy installation
Extended creepage distance for superior performance
Excellent corrosion resistance for long service life
Outstanding mechanical and electrical properties
Ideal for heavy pollution environments

Technical Specifications

Model	Rated Voltage (kV)	Mechanical Load (kN)	Height (mm)	Arc Distance (mm)	Creepage Distance (mm)	Lightning Impulse (kV)	Power Frequency (kV)	Coupling Size
FXB-11/70	11	70	330	160	300	95	45	16
FXB-11/80	11	80	370	200	450	95	45	16
FXB-24/70	24	70	410	240	750	125	65	16
FXB-24/100	24	100	450	240	750	125	65	16
FXB-24/120	24	120	450	240	750	125	65	16
FXB-33/70	33	70	530	360	900	200	95	16
FXB-33/80	33	80	590	425	1080	220	95	16
FXBW-33/70	33	70	655	480	1260	220	105	16
FXBW-33/100	33	100	695	480	1260	220	105	16
FXBW4-66/70	66	70	870/940	710	2248	410	185	16
FXBW4-66/100	66	100	870/940	710	2248	410	185	16
FXBW4-110/100	110	100	1240/1440	1000/1200	3150/3860	550	230	16
FXBW4-110/160	110	160	1340	1000	3380	550	230	R20
FXBW4-145/120	145	120	1480	1240	4123	725	355	16
FXBW4-220/100	220	100	2240/2350/2470	2020/2080/2210	6450/6760/7150	1000	395	16
FXBW4-330/160	330	160	2290	2600	9075	1425	570	R20
FXBW4-220/210(160)	220	210/160	2350	2000	6800	1000	230	R20
FXBW4-330/210(160)	330	210/160	2930	2650	8790	1425	570	R20
FXBW4-500/210(160)	500	210/160	4450	4075	14860	2050	740	R20
