220kV Composite Polymer Insulator 70kN / 120kN / 160kN Long Rod Suspension Insulator

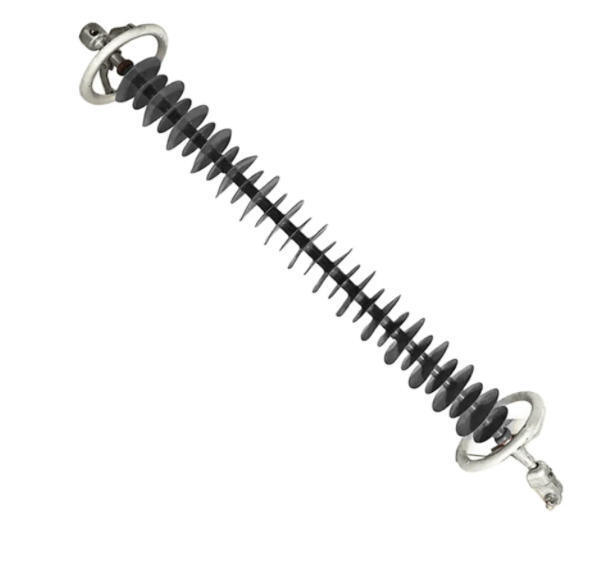

Large Image : 220kV Composite Polymer Insulator 70kN / 120kN / 160kN Long Rod Suspension Insulator

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	220kV

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	10000

Contact Now Chat Now

Detailed Product Description

Name:	Composite Polymer Insulator	Rated Voltage:	220kV
Structure & Material:	Epoxy Fiberglass Core + Hydrophobic Silicone Rubber Sheds	Mechanical Load Rating:	70kN/120kN/160kN
End Fitting Types:	Socket, Ball, Tongue, Clevis, Eye, Y-clevis	Compliance & Feature:	IEC 61109, Pollution/UV/Aging Resistant, Lightweight
Highlight:	220kV Composite Polymer Insulator , Composite Polymer Insulator 70kN , 160kN Long Rod Suspension Insulator

220kV Composite Polymer Suspension Long Rod Insulator with High Strength Epoxy Fiberglass Core and Hydrophobic Silicone Rubber Sheds

220kV Composite Polymer Suspension Long Rod Insulator IEC61109

The 220kV composite polymer suspension long rod insulator is engineered for modern high-voltage transmission infrastructure. It features a high-strength epoxy fiberglass core and hydrophobic silicone rubber sheds, providing exceptional resistance to pollution, UV radiation, and aging in harsh environmental conditions.

For 220kV overhead lines, we strongly recommend installing corona rings. These components optimize voltage distribution at the end fittings and significantly reduce corona discharge, enhancing system performance and extending insulator service life.

Customization Options

Available in multiple mechanical load ratings: 70kN, 120kN, or 160kN
Custom designs available according to your specifications
Multiple end fitting types: socket, ball, tongue, clevis, eye, and Y-clevis
Full compatibility with diverse line hardware configurations

Manufactured to comply with IEC 61109 standards, this lightweight solution is ideal for long-span and compact transmission lines.

Technical Specifications (IEC 61109)

Model	Rated voltage (kV)	Specified mechanical load (kN)	Coupling size	Section length(mm)	Min Arc distance (mm)	Leakage distance (mm)	Lightning impulse withstand BIL (kV)	Power frequency withstand(wet) (kV)
FXBW-220/70	220	70	16	2150±35	1900	6300	1000	395
FXBW-220/100	220	100	16	2150±35	1900	6300	1000	395
FXBW4-220/120	220	120	16	2240±30	2000	6600	1000	395
FXBW-220/160	220	160	20	2240±30	1900	6300	1000	395
