10kN High Voltage Insulator 110kV 220kV HV Insulator With Glass Fiber Reinforced Resin Core

Large Image : 10kN High Voltage Insulator 110kV 220kV HV Insulator With Glass Fiber Reinforced Resin Core

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	FZSW

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$9
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	High Voltage Insulator	Rated Voltage:	11/24/33/66/110/220kV
Structure & Material:	Silicone Rubber + FRP Core + Galvanized Steel/Aluminum Alloy End Fittings	Rated Mechanical Load:	10kN Bending Load
Application:	Substations & High-Voltage Power Equipment (Conductor Support & Insulation)	Core Feature:	Pollution Flashover Resistant, Hydrophobic, Weather Durable, Lightweight
Highlight:	10kN High Voltage Insulator , High Voltage Insulator 110kV , 220kV HV Insulator

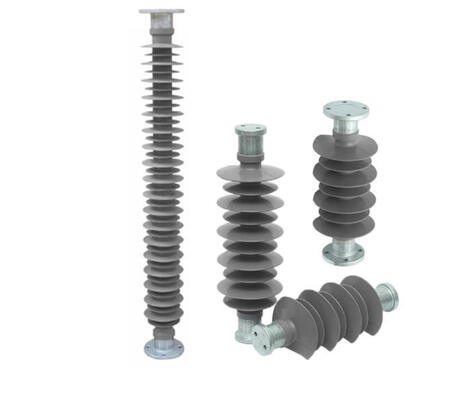

High Voltage Insulator with Glass Fiber-Reinforced Resin Core and Galvanized Steel End Fittings for High Mechanical Strength

Polymer Station Post Insulators are essential components in substations and high-voltage power equipment, providing reliable conductor support while ensuring superior electrical insulation.

Structure and Composition

Insulation Component: Silicone rubber polymer construction delivers exceptional pollution flashover resistance and hydrophobic properties.
Core Rod: Glass fiber-reinforced resin (FRP) core provides high mechanical strength and durability.
End Fittings: Galvanized steel or aluminum alloy fittings ensure secure attachment to power equipment.

With advantages including lightweight design, superior pollution resistance, and excellent weather durability, these polymer insulators are increasingly replacing traditional porcelain post insulators.

Technical Specifications (IEC 61952)

Model	Rated Voltage (kV)	Rated Mechanical Bending Load (kN)	Structure Height (mm)	Minimum Arc Distance (mm)	Minimum Creepage Distance (mm)	Lightning Impulse Withstand Voltage,peak (kV)	Power Frequency 1 min Wet Withstand Voltage (kV)
FZSW-11/10	11	10	255	175	600	145	45
FZSW-24/10	24	10	300	210	630	145	65
FZSW-33/10	33	10	450	275	900	200	95
FZSW-33/10	33	10	400	285	1060	200	95
FZSW-66/10	66	10	760	630	1940	350	185
FZSW-110/10	110	10	1220	1060	3260	450	200
FZSW-220/10	220	10	2550	2050	6520	950	395
