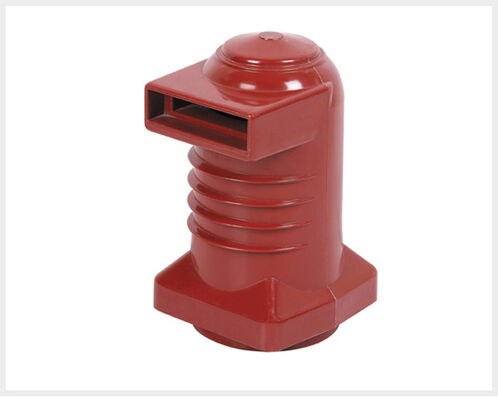

APG Switchgear Accessories 12KV High Voltage Insulators Indoor For Switchgear Cabinet

Large Image : APG Switchgear Accessories 12KV High Voltage Insulators Indoor For Switchgear Cabinet

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	CHN3-12KV-150

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$6
Packaging Details:	cartons and pallet
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	30000

Contact Now Chat Now

Detailed Product Description

Name:	Switchgear Accessories	Material:	Epoxy Resin
Rated Current:	≤630A～1250A	Rated Voltage:	12KV
Technology:	APG Technology
Highlight:	APG Switchgear Accessories , Switchgear Accessories 12KV , High Voltage Insulators Indoor

Indoor 12KV High Voltage Epoxy Resin Corner Insulator Contact Box with Rated Current ≤630A～1250A for Switchgear Cabinet

High-performance epoxy resin contact box designed for insulation, isolation, and connection transition in various handcart switchgear applications.

Product Specifications

Model No: CHN3-12KV-150

Material: Epoxy Resin

Rated Current: ≤630A～1250A

Rated Voltage: 12KV

Technology: APG technology

Operation Conditions

Altitude: ≤ 1000m
Ambient temperature: +40~-10º C
Relative humidity ≤ 95% at +20º C
No corrosive, explosive, or insulation-affecting substances in environment

Technical Data & Requirements

Copper contact to earth withstands 42kV power frequency test voltage (effective value) for 5 minutes
Withstands lightning impulse voltage (peak value) of 75KV
Lead-out terminal temperature ≤ 65º C during continuous operation at rated current

Product Drawing
