630A Switchgear Accessories 36kV 40.5kV Epoxy Resin Insulators

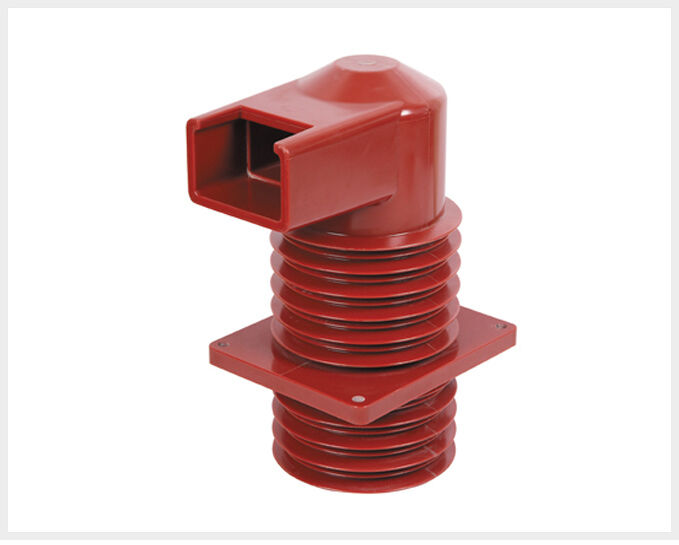

Large Image : 630A Switchgear Accessories 36kV 40.5kV Epoxy Resin Insulators

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	CHN3-40.5KV-550

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$20
Packaging Details:	cartons & pallet
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	Switchgear Accessories	Material:	Epoxy Resin
Rated Current:	≤630A	Rated Voltage:	40.5KV
Technology:	APG Technology
Highlight:	630A Switchgear Accessories , Switchgear Accessories 36kV , 40.5kV Epoxy Resin Insulators

36kV 40.5kV Epoxy Resin Insulation Contact Box for Isolation in Handcart Switchgearr

Product Specifications

Model No: CHN3-40.5KV-550

Material: Epoxy Resin

Rated Current: ≤630A

Rated Voltage: 40.5KV

Technology: APG technology

Application

Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions

Altitude: ≤ 1000m
Ambient temperature: +40~-10º C
The relative humidity shall not be more than 95% at +20º C ambient temperature
No gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

Technical Data & Requirements

The copper contact to earth shall withstand power frequency test voltage (effective value) of 42kV for 5 minutes and lightning impulse voltage (peak value) of 75KV
The temperature of lead-out terminal shall not be more than 65º C if the contact box is used for long time in rated current condition
