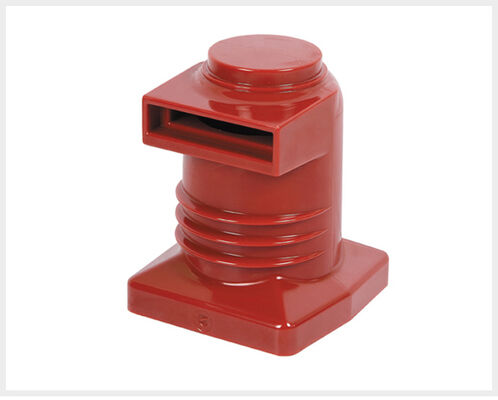

Epoxy Resin Contact Box 24KV APG Technology For Insulation

Epoxy Resin Contact Box 24KV APG Technology For Insulation
Epoxy Resin Contact Box 24KV APG Technology For Insulation

Large Image :  Epoxy Resin Contact Box 24KV APG Technology For Insulation

Product Details:
Place of Origin: China
Brand Name: MacweyTEK
Certification: IEC
Model Number: CHN3-12KV-190
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $10
Packaging Details: carton & pallet
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 30000
Contact Now Chat Now
Detailed Product Description
Name: Epoxy Resin Contact Box Material: Epoxy Resin
Rated Current: ≤1600A Rated Voltage: 12KV
Technology: APG Technology
Highlight:

Epoxy Resin Contact Box

,

Contact Box 24KV

,

APG Technology Contact Box

24KV Epoxy Resin Contact Box with APG Technology for Insulation in Handcart Switchgear
High-performance epoxy resin contact box designed for insulation, isolation, and connection transition in various types of handcart switchgear.
Key Specifications
Model No CHN3-12KV-190
Material Epoxy Resin
Rated Current ≤1600A
Rated Voltage 12KV
Technology APG technology
Operation Conditions
  • Altitude: ≤ 1000m
  • Ambient temperature: +40~-10º C
  • Relative humidity ≤ 95% at +20º C ambient temperature
  • No corrosive gases, vapors, or dust that may affect insulation
  • No explosive or corrosive substances in operating environment
Technical Requirements
  • Copper contact to earth withstands power frequency test voltage (42kV effective value) for 5 minutes
  • Withstands lightning impulse voltage (75kV peak value)
  • Lead-out terminal temperature ≤ 65º C during continuous operation at rated current
Epoxy Resin Contact Box 24KV APG Technology For Insulation 0

Tag:

Through Wall Bushing,

Wall Through Bushing,

Epoxy Resin Bushing
