APG Technology Switchgear Accessories Epoxy Resin High Voltage Wall Bushing 24KV Contact Box

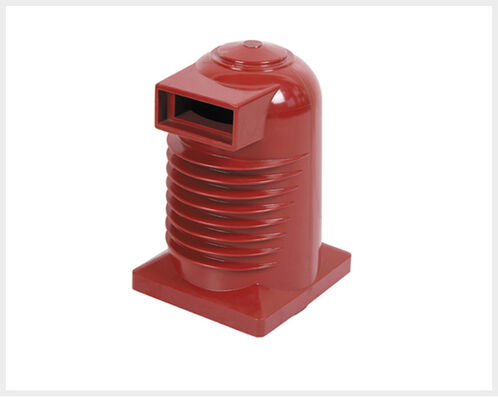

Large Image : APG Technology Switchgear Accessories Epoxy Resin High Voltage Wall Bushing 24KV Contact Box

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	CHN3-24KV-225

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	carton & pallet
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	30000

Contact Now Chat Now

Detailed Product Description

Name:	Switchgear Accessories	Material:	Epoxy Resin
Rated Current:	≤630A～1600A	Rated Voltage:	24KV
Technology:	APG Technology	Application:	Used For Insulation, Isolation & Connection Transition In Various Kinds Of Handcart Switchgear
Highlight:	APG Technology Switchgear Accessories , Epoxy Resin High Voltage Wall Bushing , High Voltage Wall Bushing 24KV

24kv High Voltage Wall Bushing Contact Box with Rated Current ≤630A～1600A and Rated Voltage 24KV

Model No: CHN3-24KV-225

Product Specifications

Material: Epoxy Resin
Rated Current: ≤630A～1600A
Rated Voltage: 24KV
Technology: APG technology
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions

Altitude: ≤ 1000m
Ambient temperature: +40~-10º C
The relative humidity shall not be more than 95% at +20º C ambient temperature
NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

Technical Data & Requirements

The copper contact to earth shall withstand power frequency test voltage (effective value) of 42kV for 5 minutes and lightning impulse voltage (peak value) of 75KV
The temperature of lead-out terminal shall not be more than 65º C if the contact box is used for long time in rated current condition
