2000A High Voltage Insulator APG Epoxy Resin Insulator For KYN28 Switchgear

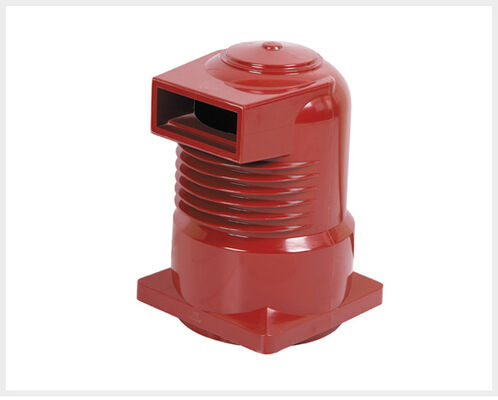

Large Image : 2000A High Voltage Insulator APG Epoxy Resin Insulator For KYN28 Switchgear

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	CHN3-24KV-250

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	carton & pallet
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	30000

Contact Now Chat Now

Detailed Product Description

Product Name:	Epoxy Resin Insulator	Material:	Epoxy Resin
Rated Current:	≤2000A～2500A	Rated Voltage:	24KV
Technology:	APG Technology
Highlight:	2000A High Voltage Insulator , APG Epoxy Resin Insulator , 2000A Epoxy Resin Insulator

24kV High Voltage Epoxy Resin Insulator Contact Box with 2000A Rated Current and 24KV Rated Voltage for KYN28 Switchgear

Product Description

The 24kV High Voltage Epoxy Resin Insulator is designed for KYN28 switchgear applications, providing reliable insulation, isolation, and connection transition in various handcart switchgear configurations.

Key Specifications

Model No	CHN3-24KV-250
Material	Epoxy Resin
Rated Current	≤2000A～2500A
Rated Voltage	24KV
Technology	APG technology

Operation Conditions

Altitude: ≤ 1000m
Ambient temperature: +40~-10º C
Relative humidity ≤ 95% at +20º C ambient temperature
No corrosive, explosive, or insulating-damaging substances in environment

Technical Requirements

Copper contact to earth withstands 42kV power frequency test voltage (effective value) for 5 minutes and 75KV lightning impulse voltage (peak value)
Lead-out terminal temperature ≤ 65º C during continuous operation at rated current
