40.5KV Switchgear Accessories Epoxy Resin Insulation Contact Box With APG Technology

Name: 40.5KV Switchgear Accessories Epoxy Resin Insulation Contact Box With APG Technology
Brand: Ningbo Macwey Industrial Technology Co.,Ltd
Availability: InStock

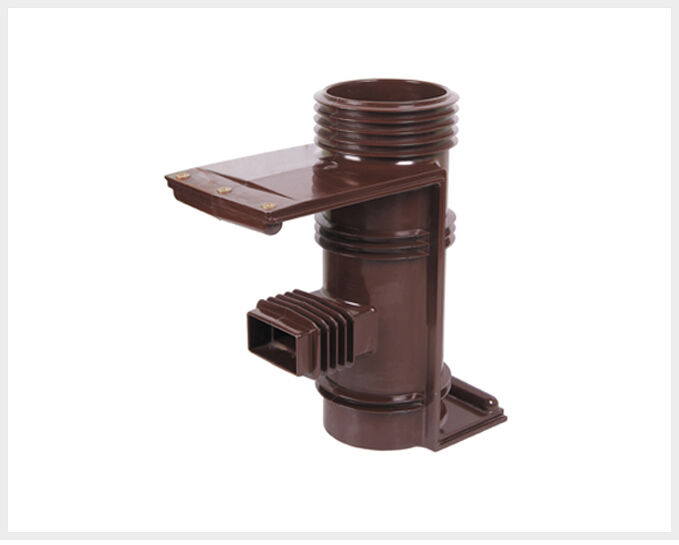

Large Image : 40.5KV Switchgear Accessories Epoxy Resin Insulation Contact Box With APG Technology

Product Details:

Contact Now Chat Now

Detailed Product Description

Name:	Switchgear Accessories	Material:	Epoxy Resin
Rated Current:	630A-2000A	Rated Voltage:	40.5KV
Technology:	APG Technology	Operation Conditions:	Altitude≤ 1000m
Highlight:	40.5KV Switchgear Accessories , Epoxy Resin Contact Box , Insulation Contact Box

IEC Standard 40.5kv Insulation Contact Box with APG Technology for 630A-2000A Current in 36kv Metalclad Switchgear

Product Specifications

Model No	CHN3-40.5KV-660
Material	Epoxy Resin
Rated Current	630A-2000A
Rated Voltage	40.5KV
Technology	APG technology

Application

Used for insulation, isolation & connection transition in various kinds of handcart switchgear

Operation Conditions

Altitude: ≤ 1000m
Ambient temperature: +40~-10º C
Relative humidity ≤ 95% at +20º C ambient temperature
No gas, vapor or dust that may severely affect insulation
No explosive or corrosive substances

Technical Data & Requirements

Copper contact to earth withstands power frequency test voltage (effective value) of 42kV for 5 minutes and lightning impulse voltage (peak value) of 75KV
Lead-out terminal temperature ≤ 65º C when used continuously at rated current
