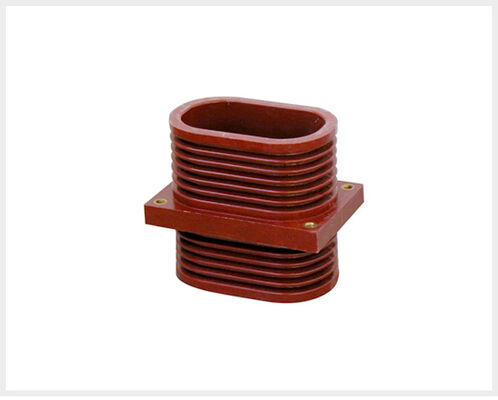

12kV Switchgear Accessories Epoxy Resin Through Wall Bushing For High Voltage Panel Cells

Large Image : 12kV Switchgear Accessories Epoxy Resin Through Wall Bushing For High Voltage Panel Cells

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	12KV-110180190

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$10
Packaging Details:	cartons & pallet
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	Switchgear Accessories	Material:	Epoxy Resin
Application:	High Voltage Switching Equipment	Rated Voltage:	10kv, 24kv, 35kv, 40.5kv
Rated Current:	630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A	Product Certification:	CE And ISO 9001:2000
Highlight:	12kV Switchgear Accessories , Epoxy Resin Through Wall Bushing , Through Wall Bushing 12kV

12kV Epoxy Resin Through Wall Bushing for High Voltage Panel Cells with Rated Voltage 10-40.5kV and Current 630-4000A

The high-voltage wall bushing is designed for three-phase AC system power stations and substation power distribution devices with rated voltage (10~40.5) KV, frequency (15~60) Hz. It enables conductive parts to pass through partitions, walls, or other grounded objects, providing insulation support and fixed connections between external conductors (busbars).

Product Specifications

Brand	Macwey
Material	Epoxy resin
Application	High voltage switching equipment
Product Certification	CE and ISO 9001:2000
Rated voltage	10kv, 24kv, 35kv, 40.5kv
Rated current	630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A

Packaging & Shipping

Each unit wrapped with protective plastic film
Packed in sturdy cartons
Cartons secured on wooden/plastic pallets
Loading ports: Ningbo / Shanghai
Standard delivery within 15 days (varies by order quantity)

Payment & Advantages

Accepted payment methods: T/T, L/C, Western Union
OEM services available
Premium quality with guaranteed timely delivery
Competitive pricing
Available in multiple designs and specifications
