SM30 High Voltage Insulator M8 Red Insulator With Copper Core

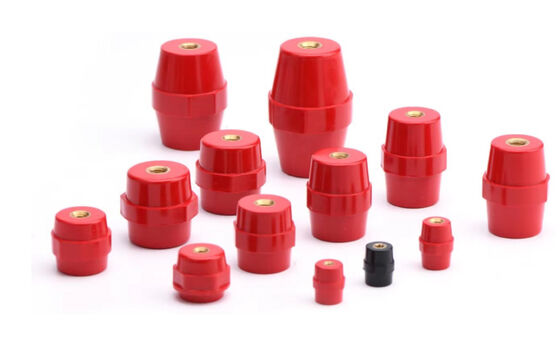

Large Image : SM30 High Voltage Insulator M8 Red Insulator With Copper Core

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	SM30

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$0.1
Packaging Details:	cartons
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	1000000

Contact Now Chat Now

Detailed Product Description

Name:	High Voltage Insulator	Size:	Multiple Specifications Available
Color:	Red	Material:	BMC/SMC Composite
Operating Temperature:	-40°C To +140°C	Insert Material:	Brass/Steel With Zinc Coating
Highlight:	SM30 High Voltage Insulator , High Voltage Insulator M8 , M8 Red Insulator

SM30 Model M8 Size High Voltage Insulator with Copper Core and -40~+140 Operating Temperature

The SM30 × M8 Copper Core Insulator is a compact, high-performance insulating component designed for electrical applications requiring reliable thermal and electrical isolation.

Specification	Details
Brand Name	MacweyTEK
Place of Origin	Ningbo, China
Model Number	SM30
Size	Multiple specifications available
Color	Red
Material	BMC/SMC composite
Operating Temperature	-40°C to +140°C
Insert Material	Brass/Steel with Zinc coating
Package	Standard cartons
