58 Pairs Circuit Breaker Accessories GDZ-58 Secondary Plug Socket For VS1 VD4 Circuit Breakers

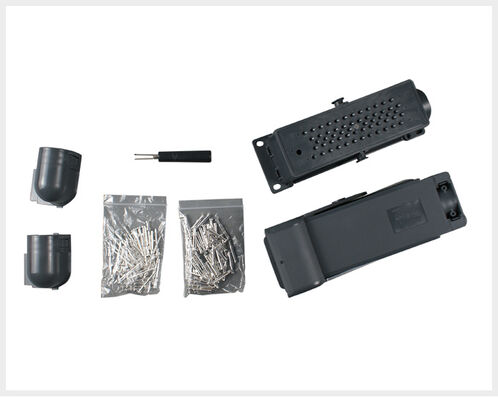

Large Image : 58 Pairs Circuit Breaker Accessories GDZ-58 Secondary Plug Socket For VS1 VD4 Circuit Breakers

Product Details:

Brand Name:	MacweyTEK
Certification:	Type Test Report
Model Number:	GDZ-58

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	$5-$15
Packaging Details:	Carton
Delivery Time:	5 days
Payment Terms:	T/T
Supply Ability:	10000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Circuit Breaker Accessories	Rated Voltage:	AC380V, DC220V
Rated Current:	AC16A, DC10A	Mechanical Life:	2000 Operations
Advantages:	Simplified Structure, More Convenient Assembly
Highlight:	58 Pairs Circuit Breaker Accessories , GDZ-58 Secondary Plug Socket , Secondary Plug Socket 58 Pin

GDZ-58 Secondary Connector Socket for VS1 VD4 Circuit Breakers 58 Pairs

The GDZ-58 secondary connector socket is a newly developed product featuring international advanced technology. Designed for compatibility with major vacuum circuit breakers (VS1, VD4) and popular switchgears (KYN28 series), it meets both Chinese and European performance standards.

Key Features

58 pairs of plug pin and plug hole contacts
Flexible contact quantity selection based on technical requirements
Simple, convenient assembly process
Enhanced product stability

Technical Specifications

Parameter	Value
Rated Voltage	AC380V, DC220V
Rated Current	AC16A, DC10A
Mechanical Life	2000 operations

Installation Process

Connecting Method: Open the locking device, separate plug from socket, remove cover plates, insert cable into wiring holes, and secure with special clamp. Proper mounting is confirmed by an audible click. Cables exit through wire leads and connect using professional M36*8 plastic soft pipes with internal metal spring coating.

Special Demount Tool

Includes a fastening yoke for safe adjustment of misaligned plug pins/holes without damaging surface coatings or socket base.

Advantages of New Style Design

Simplified structure
More convenient assembly
Improved operational stability
