380V 220V Circuit Breaker Accessories Siemens Circuit Breaker Secondary Socket

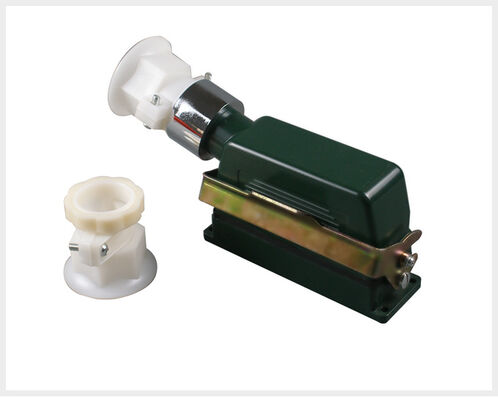

Large Image : 380V 220V Circuit Breaker Accessories Siemens Circuit Breaker Secondary Socket

Product Details:

Brand Name:	MacweyTEK
Certification:	IEC Test Report
Model Number:	JN2-10 (24 cores)

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$10-$40
Packaging Details:	carton
Delivery Time:	10 days
Payment Terms:	T/T
Supply Ability:	3000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Circuit Breaker Accessories	Rated Voltage:	AC380V, DC220V
Rated Current:	AC16A, DC10A	Mechanical Life:	2000 Times
Contact Cores:	24 Contact Cores	Module:	JN2-10
Highlight:	380V Circuit Breaker Accessories , 220V Circuit Breaker Accessories , Siemens Circuit Breaker Secondary Socket

Siemens JN2-10 24-Core Secondary Connector Socket for Circuit Breakers

Structural Features

The connector socket features a plug pin and plug hole design with 24 contact cores. Compared to similar imported products, we've enhanced the connector between the socket base and flexible pipe, along with the fixed seat. It comes with a plastic flexible pipe (internally coated with metal spring) for durability, featuring an attractive exterior design, comfortable handling, and easy operation. The built-in positioning device prevents misoperation.

Connecting Method

Open the connector socket's locking device and separate the plug from the socket.
Remove the cover plates and insert the cable into the plug pin or plug hole wiring holes, securing it with a special clamp.
Insert the plug pin or plug hole into the corresponding mounting holes of the plug or socket base until you hear a click, indicating proper installation.
The cable exits through the wire lead and is paired with a professional plastic soft pipe (M36*8, internally coated with metal spring).
Secure the cover plates on the plug and socket base, and fix the other end of the cables to the equipment using a special turn head.
The connector socket cables are led out from the bottom and fixed to the equipment.

Basic Parameters

Parameter	Value
Rated voltage	AC380V, DC220V
Rated current	AC16A, DC10A
Mechanical life	2000 times
