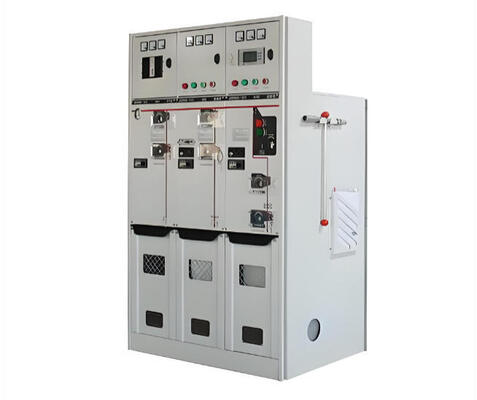

Modular Design outdoor switchgear featuring Protection Degree IP4X ideal for electrical system management in industrial applications

Product Description:

The MV Switchgear is an advanced electrical distribution solution designed to meet the demanding requirements of medium voltage networks. It is engineered with a modular design, allowing for flexible configurations that can be tailored to various applications, ensuring ease of installation, maintenance, and scalability. This switchgear is ideal for use in power distribution systems, industrial plants, and utility networks, providing reliable and efficient control and protection of electrical circuits.

One of the standout features of this MV Switchgear is its robust protection class of IP4X. This rating guarantees that the switchgear is well-protected against the ingress of solid foreign objects larger than 1mm, such as wires or screws, which enhances safety and operational reliability in harsh environmental conditions. This makes it suitable for indoor installations where consistent performance and protection are critical.

Weight-wise, the MV Switchgear varies significantly depending on the configuration and size, ranging from 500kg to 3000kg. This variance provides flexibility to accommodate different installation requirements and space constraints without compromising on structural integrity or performance. The three-pole design ensures effective switching and protection across three electrical phases, making it ideal for medium voltage applications.

The switchgear supports current ratings of 630A and 1250A, catering to a broad spectrum of electrical load demands. This capability ensures that it can be deployed in diverse settings, from smaller industrial facilities to large-scale utility substations. The current ratings are designed to handle high electrical loads safely, maintaining system stability and minimizing downtime.

In terms of technology, the MV Switchgear incorporates elements of Gas Insulated Metal Enclosed Switchgear (GIS) technology. This integration offers enhanced safety, reliability, and compactness compared to traditional air-insulated switchgear. The use of gas insulation significantly reduces the footprint of the equipment and minimizes the risk of electrical faults caused by environmental factors such as dust and moisture.

Moreover, this switchgear is compatible with 12kV switchgear systems, making it a versatile choice for medium voltage applications. Its design and specifications align with industry standards for 12kV electrical distribution, ensuring seamless integration into existing electrical networks. Additionally, it can be configured as a 13.8 kV Ring Main Unit, which is widely used in power distribution networks for its ability to provide continuous power supply and improve system reliability through ring topology.

The modular design of this MV Switchgear allows for easy expansion and customization, enabling operators to add or remove units as needed. This flexibility reduces initial capital expenditure and allows for future upgrades without extensive system overhauls. The modular approach also simplifies repair and maintenance processes, as individual modules can be serviced or replaced without disrupting the entire system.

In summary, the MV Switchgear is a highly reliable, flexible, and efficient electrical distribution device designed to meet medium voltage power management needs. Featuring a protection class of IP4X, a weight range from 500kg to 3000kg, and a three-pole configuration with current ratings of 630A and 1250A, it stands out as a robust solution for various industrial and utility applications. Its incorporation of Gas Insulated Metal Enclosed Switchgear technology and compatibility with 12kV switchgear and 13.8 kV Ring Main Units further underline its adaptability and advanced engineering. Whether deployed in new installations or retrofitted into existing networks, this MV Switchgear ensures enhanced safety, reliability, and operational efficiency for medium voltage electrical systems.

Features:

• Product Name: MV Switchgear
• Absolute Pressure: 1.4 bar
• Rated Current Options: 630A, 1250A
• Protection Class: IP4X
• Protection Degree: IP4X
• High reliability SF6 switchgear technology
• Compact and efficient RMU Switchgear design
• Durable and safe SF6 switchgear for medium voltage applications

Technical Parameters:

Applications:

The Macwey Technology MV Switchgear, model number MACO, is a highly reliable and versatile solution designed for various electrical distribution and control applications. Originating from China, this SF6 Insulated Switchgear is engineered to meet stringent industry standards such as IEC 62271-200 and ANSI, ensuring safety, durability, and optimal performance in diverse environments.

This Gas Insulated Metal Enclosed Switchgear is ideal for medium voltage distribution networks where space constraints and environmental protection are critical factors. Its compact design and IP4X protection class make it suitable for both indoor and outdoor installations, providing robust protection against dust and foreign objects. The switchgear's three-pole configuration allows for efficient handling of three-phase electrical systems, enhancing operational flexibility and reliability.

In terms of operation, the MACO switchgear offers both manual and electric modes, catering to different user preferences and operational requirements. This flexibility is particularly advantageous in scenarios where remote control or automation integration is essential, such as in smart grid applications or industrial automation systems.

The Gas Insulated Metal Enclosed Switchgear is commonly applied in utility substations, industrial plants, commercial buildings, and renewable energy facilities. It is especially suited for urban power distribution networks where space is limited and safety standards are rigorous. Additionally, its SF6 insulation technology ensures minimal maintenance and long service life, making it an excellent choice for critical infrastructure where reliability is paramount.

Furthermore, the switchgear’s compliance with international standards ensures compatibility and interoperability with various electrical systems worldwide. This makes the MACO model a preferred choice for multinational projects and retrofit applications where adherence to IEC and ANSI standards is required.

In summary, the Macwey Technology MACO MV Switchgear combines advanced SF6 insulation, robust Gas Insulated Metal Enclosed Switchgear design, and flexible operation modes to meet the demands of modern electrical distribution. Whether deployed in utility grids, industrial environments, or commercial settings, it delivers dependable performance, safety, and efficiency across a wide range of application occasions and scenarios.
