Indoor HV Current Transformer 12kV 24kV 35kV CT Transformers

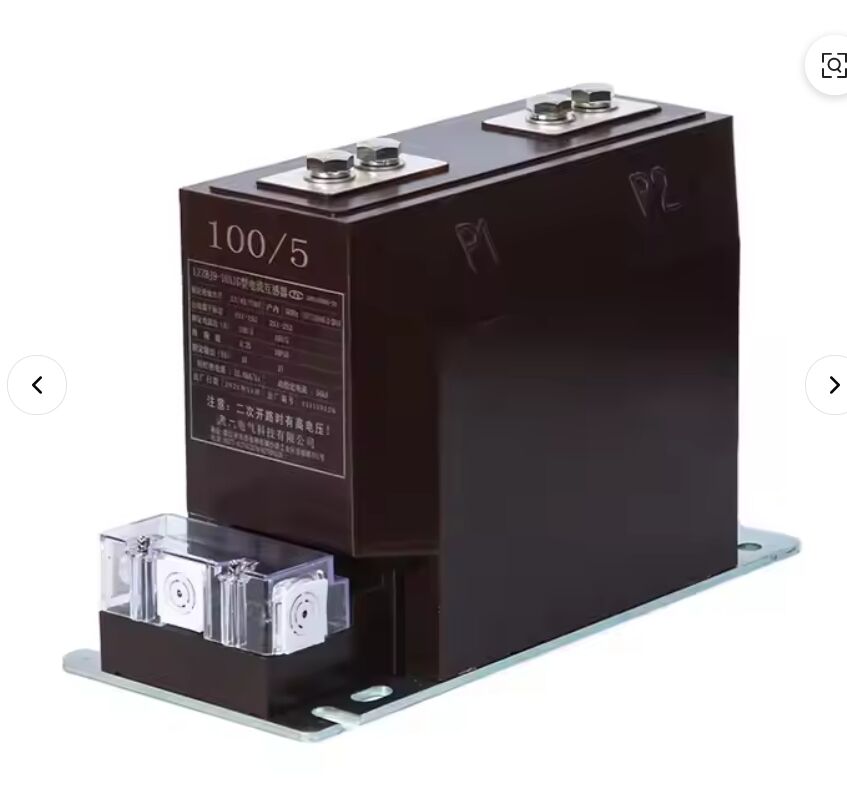

Large Image : Indoor HV Current Transformer 12kV 24kV 35kV CT Transformers

Product Details:

Place of Origin:	China
Brand Name:	MacweyTek
Model Number:	LZZBJ9

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$30-$50
Packaging Details:	wooden case
Delivery Time:	15 DAYS
Payment Terms:	T/T
Supply Ability:	5000

Contact Now Chat Now

Detailed Product Description

Name:	HV Current Transformer	Application:	Current
Phase:	Single Phase	Type:	Instrument Transformer
Material:	PLastic, Metal, Copper, Resin, Silicon Steel Sheet	Frequency:	50Hz, 60Hz
Highlight:	Indoor HV Current Transformer , HV Current Transformer 24kV , 35kV CT Transformers

LZZBJ9 10kV Indoor High Voltage Current Transformer 12kV 24kV 35kV

Product Overview

The LZZBJ9 High Voltage Current Transformer is engineered for 1kV to 220kV power systems, converting high voltage or current into measurable values for accurate monitoring and protection in AC circuits.

Key Features

Designed for indoor/outdoor use with voltage ratings from 10kV to 35kV
Accurate current and voltage transformation for measurement and relay integration
Primary and secondary windings for safe circuit operations
Includes grounding and fuse protection for enhanced safety
Available in dry and oil-filled configurations
Operates at 50Hz and 60Hz frequencies
Capacity range from 10kVA to 80kVA
