35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA

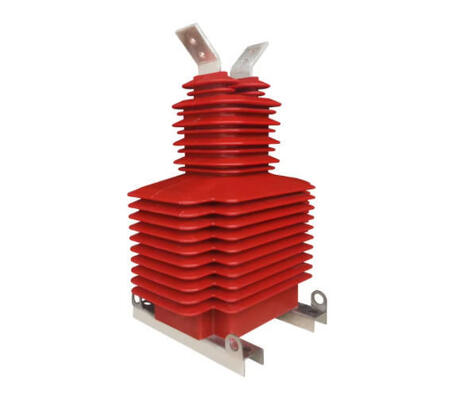

Large Image : 35kv CT PT Transformer Epoxy Resin HV Current Transformers With Accuracy Level 0.5 0.2S and 5VA

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	LZZBJ71-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$350
Packaging Details:	wooden case
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	20000

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Material:	Epoxy Resin
Accuracy Level:	0.5 - 0.2S	Voltage:	0.66KV
Rate Output:	5VA	Process:	Epoxy Resin Casting Product
Highlight:	35kv CT PT Transformer , Epoxy Resin HV Current Transformers , HV Current Transformers 35kv

High Voltage Three Phase Current Transformer CT with Accuracy Level 0.5 0.2S and 5VA Output for Switchgear 35kv

The LZZBJ71-35 Current Transformer is a high-performance epoxy resin cast product designed for switchgear applications with 35kV voltage rating. This precision instrument transformer meets GB1207/T-2014 standards and offers reliable current measurement with excellent accuracy.

Key Specifications

Model: LZZBJ71-35 Current Transformer

Material: Epoxy resin

Accuracy Level: 0.5 - 0.2S

Voltage: 0.66KV

Rate Output: 5VA

Process: Epoxy resin casting product

Standard: GB1207/T-2014

Rated Current: 5-6000A

Secondary Rated Current: 5A/1A

Protection Level: 10P

Rated Insulation Level: 40.5/95/185

Technical Parameters

Type	Rated Primary Current (A)	Accurately Class	Rated Output (VA)	Short-time Thermal Current (KAS)	Rated Dynamic Current (KA)
LZZBJ71-35W	15	0.2/10P15 0.5/10P15	10	20	50
	20			3.0/2	7.5
	30			4.5/2	11.25
	40			6.0/2	15
	50			7.5/2	18.75
	75			11.25/2	28
	100			15/2	37.5
	150			31.5/1	80
	200			31.5/2	80
	300			31.5/3	80
	400			31.5/3	80
	500			31.53	80
	600			31.5/4	80
	800			31.5/4	80
	1000			40/4	100
	1200-2000			40/4	100
