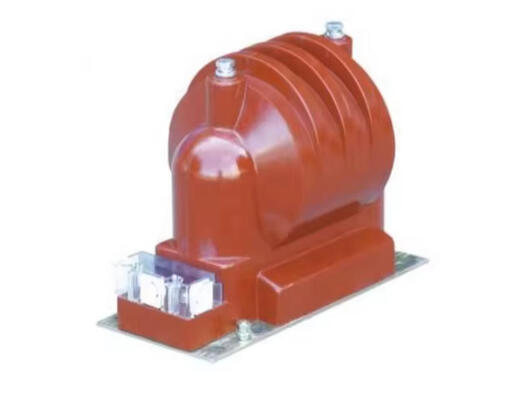

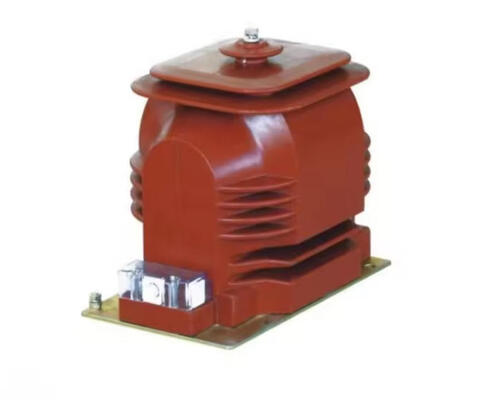

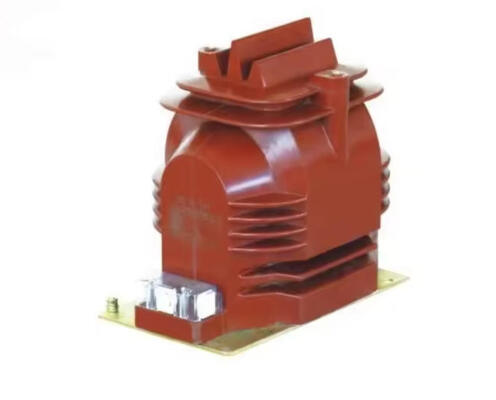

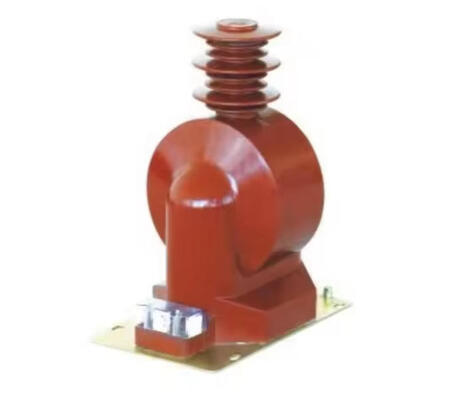

10kV CT PT Transformer IEC Standard Power Potential Transformer WIth Accuracy Class 0.2

Large Image : 10kV CT PT Transformer IEC Standard Power Potential Transformer WIth Accuracy Class 0.2

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	MKZX(F)9-10

Payment & Shipping Terms:

Minimum Order Quantity:	3
Price:	$199
Packaging Details:	wooden case
Delivery Time:	18 days
Payment Terms:	T/T
Supply Ability:	10000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	10kV
Model:	MKZX(F)9-10	Accuracy Class:	0.2
Application:	Voltage Measurement & Monitoring, Power Supply For Voltmeters & Relays	Core Feature:	Small Capacity, Small Voltage/Current Variation Difference
Highlight:	10kV CT PT Transformer , IEC Standard Power Potential Transformer , Power Potential Transformer 10kV

MKZX(F)9-10 10kV Potential Transformer PT VT Voltage Transformer with Accuracy Class 0.2 and Rated Voltage Ratio

The transformer is one of the most important electrical appliances in electric systems. Similar to power transformers, it transforms voltage or current in circuits. However, while power transformers transfer electrical energy, these transformers are specifically designed for measuring and monitoring voltage or current in circuits.

Key Characteristics

Designed for measuring and monitoring voltage in circuits
Smaller capacity compared to power transformers
Smaller change difference in voltage or current
Supplies electricity for voltage meters and relays

Technical Specifications

Type	Rated voltage ratio (kV)	Accuracy class and rated output (VA)	Max output (VA)	Rated insulation level (kV)
MKZXF9-10	10/√3/0.1/√3/0.1/√3/0.1/3	20 \| 20 \| 50 \| 100	2*300	12/42/75
MKZXF9-6	6/√3/0.1/√3/0.1/√3/0.1/3	20 \| 20 \| 50 \| 100	2*300	7.2/32/60
MKZXF9-3	3/√3/0.1/√3/0.1/√3/0.1/3	20 \| 20 \| 50 \| 100	2*300	3.6/25/40
MKZXF9-10	10/√3/0.1/√3/0.1/√3	25 \| 90 \| 180 \| 100	500	12/24/75
MKZXF9-6	6/√3/0.1/√3/0.1/√3	25 \| 90 \| 180 \| 100	500	7.2/32/60

Tag:

Contact Person: Alec Sung

Tel: 0086-13625845635

Fax: 0086-574-88478873
