Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor

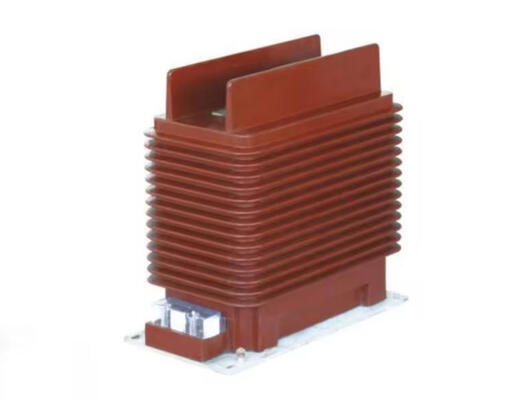

Large Image : Single Phase / Three Phase CT PT Transformer 10kV 33kV Power Transformers For Indoor Outdoor

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	MZZBJ9-35D

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$110
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	10000

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	10/33kV
Rated Current Ratio:	5-1000A/5A	Accuracy Class:	0.2S/0.5S/0.2/0.5/5P10/5P15/5P20
Installation Scope:	Indoor & Outdoor	Rated Secondary Output:	3-50kVA
Highlight:	Single Phase CT PT Transformer , Three Phase CT PT Transformer , 33kV Power Transformers

MZZBJ9-35D Single Three Phase Current Transformer 10/33kV 5-1000A/5A 3kVA-50kVA for Indoor Outdoor Applications

10/33kV 5-1000A/5A 3kVA-50kVA Indoor & Outdoor Custom Current Transformer

Transformers are essential electrical components in power systems. While similar to power transformers in function, current transformers specifically serve measurement and monitoring purposes in circuits. Power transformers handle large capacity voltage/current changes, whereas current transformers manage smaller capacity with more precise changes.

In measurement circuits, current transformers supply electricity to current meters and relays, while voltage transformers serve voltage meters and relays.

Model Definition

The model composition consists of two parts: product model letter/design number and rated voltage grade with environment code.

Technical Specifications

Type	Rated Primary Current	Accuracy Class Combination	Rated Secondary Output (VA)	1s Thermal Current (kA)	Rated Dynamic Current (kA)
0.2S 0.5S 0.2 0.5 5P10 5P15 5P20	10	0.2(S)/0.2(S)	10 10 15 30 50 30 20	1.44	3.6
	15	0.2(S)/0.5(S)	2.1/2	5.25	7.1 375lin/2
	25,30	0.2(S)/5P	2.82/2	30-100	0.5(S)/5P
	150	5P/5P	31.5 31.5/2 31.5/3 31.5/4 40/4	80 80 80 80 100	200,250

Overall Dimensions

Tag:

Contact Person: Alec Sung

Tel: 0086-13625845635

Fax: 0086-574-88478873
