10P High Voltage Transformers 5A- 6000A Indoor Current Transformer

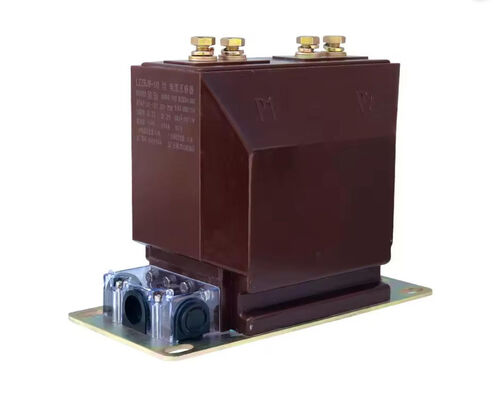

Large Image : 10P High Voltage Transformers 5A- 6000A Indoor Current Transformer

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	LZZBJ9-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$80-$150
Packaging Details:	wooden case
Delivery Time:	15 days
Payment Terms:	T/T
Supply Ability:	20000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	Name	Material:	Epoxy Resin
Accuracy Level:	0.5 - 0.2S	Voltage:	0.66KV
Rate Output:	5VA	Rated Current:	5-6000A
Highlight:	10P High Voltage Transformers , High Voltage Transformers 5A , 6000A Indoor Current Transformer

LZZBJ9-10 High Voltage Indoor Current Transformer with 10P Protection and Rated Current 5-6000A for Secondary Rated Current 5A/1A

The LZZBJ9-10 High Voltage Indoor Current Transformer is designed for precise current measurement in switchgear applications, featuring epoxy resin construction for durability and reliability.

Key Specifications

Model: LZZBJ9-10 Current Transformer
Material: Epoxy resin
Accuracy Level: 0.5 - 0.2S
Voltage: 0.66KV
Rate Output: 5VA
Rate Output: Epoxy resin casting
Product Standard: GB1207/T-2014
Rated Current: 5-6000A
Secondary Rated Current: 5A/1A
Protection Level: 10P

Technical Specifications

Model	Rated Primary Current (A)	Accuracy Level Combination	Rated Output (VA)	Rated Short-time Thermal Current (kA/s)	Rated Dynamic Stabilization Current (kA)
LZZBJ9-10(12)A1	5	0.2(S) 0.5(S) 0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.2(S)/10P10 0.5(S)/10P10 0.2(S)/0.5(S)/10P10	10 10 10/10 10/10 10/15 10/15	0.5	1.25
	10			1	2.5
	15			1.5	3.75
	20			2.0	5.0
	30			3	7.5
	40			4.0	10
	50			5	12.5
	75			7.5	25
	100			10	25
	150			15	37.5
	200-600			45	112.5
	800-1200			63	130
	1500-3000			80	160
