10A 220V DC Circuit Breaker Accessories 3NO / 2NO1NC Auxiliary Switch For MV Switchgear

Name: 10A 220V DC Circuit Breaker Accessories 3NO / 2NO1NC Auxiliary Switch For MV Switchgear
Brand: Ningbo Macwey Industrial Technology Co.,Ltd
Availability: InStock

Large Image : 10A 220V DC Circuit Breaker Accessories 3NO / 2NO1NC Auxiliary Switch For MV Switchgear

Product Details:

Contact Now Chat Now

Detailed Product Description

Name:	Circuit Breaker Accessories	Rated Voltage:	DC220 \| AC380
Rated Current:	10A \| 15A	Insulation Voltage:	660V
Electric Life:	20000 Time	Mechanical Life:	30000 Time
Highlight:	220V DC Circuit Breaker Accessories , 3NO Auxiliary Switch , 2NO1NC Auxiliary Switch

GDF-3 Auxiliary Switch 3NO/2NO1NC 10A 220V DC for MV Switchgear

GDF Series Auxiliary Switches GDF-3

Product Introduction

This product is widely used in middle-positioned high voltage switchgear's handcart, vacuum contactor, vacuum load switch, and other high voltage switch equipment. It serves as an indicator or interlock for connecting, breaking, tripping, and signaling operations.

Specification

3 pairs of contacts
4 different structure models available: 3NO, 2NO1NC, 1NO2NC, 3NC

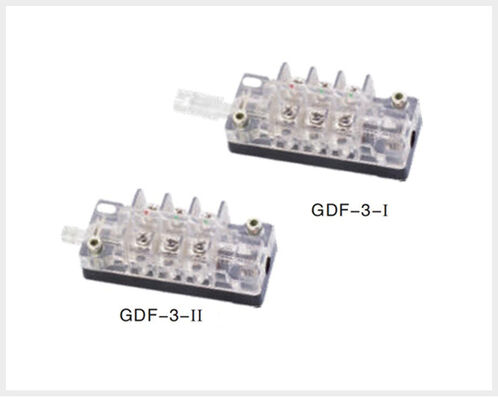

Type(Ⅰ): Push rod with connecting piece (L)
Type (Ⅱ): Push rod with buffering piece (H)

Basic Technical Data

Parameter	Value
Rated voltage	DC220 \| AC380
Rated current	10A \| 15A
Rated breaking current	-3 e=22 \| COS Φ=0.4
Insulation voltage	660V
Electric life	20000 time (open/close)
Mechanical life	30000 time (open/close)
Travel distance of push rod	6.5-7mm

Outline Dimensions
