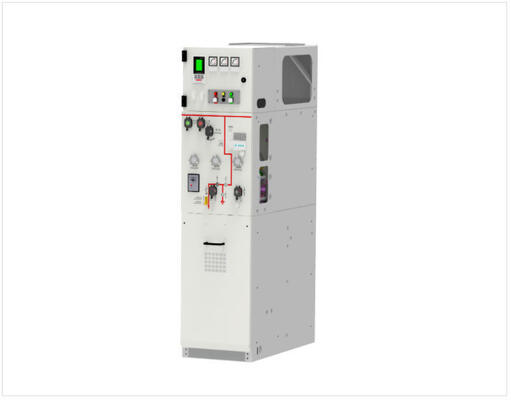

SF6 Free High Voltage Switchgear 12kv Solid Insulated Switchgear For Indoor

Large Image : SF6 Free High Voltage Switchgear 12kv Solid Insulated Switchgear For Indoor

Product Details:

Brand Name:	MKS-12
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2000
Packaging Details:	Wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	2000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	High Voltage Switchgear	Product Model:	MKS-12
Rated Specification:	12 KV - 630 A	Core Unit Configuration:	Upper-isolation / Lower-isolation
Operation Mode:	Manual / Electric	Control Voltage:	24 V / 48 V / 220 V (110 V On Request)
Highlight:	SF6 Free High Voltage Switchgear , High Voltage Switchgear 12kv , Indoor Solid Insulated Switchgear

High Voltage Switchgear 12kv Solid Insulated Ring Main Unit RMU For Indoor with SF6 free

Since the 1990s, with accelerating urbanization and continual improvement of power supply reliability, overhead lines have been replaced by buried cables and indoor switching stations by outdoor switching stations. The small, touchable, all-insulated, flood-control, and maintenance-free ring main units have rapidly developed and are widely used in various locations requiring reliable power distribution systems, including urban commercial centers, industrial districts, airports, electrified railways, and expressways. These units can be used singly indoors or outdoors, as well as integrated into prefabricated substations.

The MKS series solid-insulated ring main units incorporate advanced production facilities and manufacturing technology, enabling localized production that significantly reduces manufacturing costs and shortens delivery periods. This product line has received favorable responses since its launch.

Key Specifications

Product Model: MKS-12
Rated Specification: 12 kV - 630 A
Core Unit Configuration: Upper-isolation / Lower-isolation
Altitude Classifications: ≤ 1500 m / > 1500 m
Operation Mode: Manual / Electric
Rated Short-circuit Breaking Current: 20 kA / 25 kA
Integral Earthing Switch: With / Without
Control Voltage: 24 V / 48 V / 220 V (110 V on request)
Standard Configuration: Vacuum circuit-breaker / load-break switch, three-position disconnector

Technical Specifications

Item	Unit	load switch cell	circuit breaker cell	Fuse Combining cell
Rated voltage	kV	12	12	12
Rated current	A	630	630	depend on the fuse
Rated frequency	Hz	50	50	50
1 min power frequency withstand voltage (phase to phase & phase to ground)	kV	42	42	42
1min Power Frequency Withstand Voltage (Isolation Gap)	kV	48	48	48
RatedPower Frequency Withstand Voltage(Control &Auxiliary Circuits)	kV	2	2	2
Lightning Impulse Withstand Voltage(Phase-to-Phase &Phase-to-Ground)	kV	75	75	75
Lightning Impulse Withstand Voltage (Isolation Gap)	kV	85	85	85
Short-Circuit Breaking Current	kA	20	20	depend on the fuse
Rated Short-Circuit Making Current	kA	50	50	depend on the fuse
Rated Short-Time Withstand Current	kA	20	20	/
Rated Short-Time Duration	s	4	4	/
Rated Peak Withstand Current	kA	50	50	/
Rated transfer current	A	/	/	3150
Rated Operating sequence	/	O-0.3s-CO-180s-CO	/	/
Mechanical life	times	10000	10000	10000
Disconnector/grounding switch	times	3000	3000	3000
