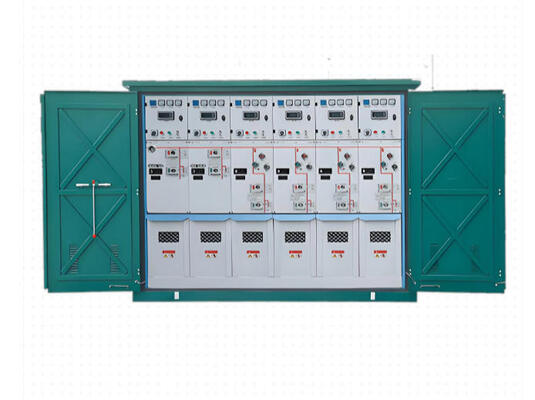

Manual and Electric Operation Mode MV Switchgear Modular Design Protection Degree IP4X Suitable for Medium Voltage Power Systems

Product Description:

The MV Switchgear is a high-performance electrical distribution solution designed to meet the rigorous demands of modern power systems. Engineered for reliability and safety, this switchgear is ideal for both industrial and utility applications, offering robust control and protection for medium voltage networks. It is specifically designed as an outdoor switchgear, making it suitable for installation in various environmental conditions without compromising its operational integrity.
This Gas Insulated Metal Enclosed Switchgear is manufactured with advanced technology that ensures compactness, durability, and excellent insulation properties. The gas insulation provides superior electrical insulation and arc quenching capabilities compared to traditional air-insulated switchgear, enhancing safety and minimizing maintenance requirements. Its metal enclosed construction offers enhanced protection against external environmental factors such as dust, moisture, and mechanical impacts, ensuring long-term reliability and performance.
The MV Switchgear supports a control voltage range of 24 V, 48 V, and 220 V, with 110 V available upon request, allowing flexible integration into various control systems. This versatility in control voltage makes it adaptable to different operational preferences and existing infrastructure standards. The switchgear is designed to handle currents of 630A and 1250A, with a rated current of 630A, ensuring it can effectively manage medium voltage loads with high efficiency and safety.
Operating at standard power frequencies of 50Hz and 60Hz, the MV Switchgear is suitable for use in diverse geographical regions with different electrical grid standards. This frequency compatibility adds to the product’s versatility and makes it an excellent choice for international applications. The switchgear features a three-pole design, which is essential for three-phase electrical systems, providing comprehensive protection and control across all phases of the power supply.
One of the key applications of this MV Switchgear is in 11 kV Ring Main Units (RMU), where it serves as a critical component for network distribution and protection. The 11 kV Ring Main Unit configuration enables efficient power distribution and fault isolation, minimizing downtime and enhancing the reliability of the electrical network. This makes the switchgear particularly valuable for utilities and industries that require uninterrupted power supply and rapid fault management.
The outdoor switchgear design of this product allows it to be installed in external environments without the need for additional enclosures or shelters. This reduces installation costs and simplifies site preparation, making it an economical and practical solution for expanding or upgrading electrical distribution networks. The Gas Insulated Metal Enclosed Switchgear also contributes to space savings due to its compact design, which is ideal for urban or constrained installation sites.
In summary, the MV Switchgear is a versatile, reliable, and efficient solution for medium voltage electrical distribution. Its gas insulated and metal enclosed design ensures superior safety and durability, while the flexible control voltage options and compatibility with 11 kV Ring Main Units make it suitable for a wide range of applications. Whether used in utility grids, industrial plants, or commercial facilities, this switchgear provides robust performance and long-lasting service in outdoor environments, supporting the critical infrastructure that powers modern life.

Features:

• Product Name: MV Switchgear
• Protection Grade: IP67, IP4X
• Short Circuit Withstand Capacity: 25kA to 50kA
• Frequency: 50Hz / 60Hz
• Operation Mode: Manual / Electric
• Protection Degree: IP4X
• Designed as outdoor switchgear suitable for various environmental conditions
• Reliable outdoor switchgear ensuring safety and performance
• Incorporates advanced Air Switchgear technology for enhanced operation

Technical Parameters:

Applications:

The MV Switchgear from Macwey Technology, model number MACO, is a highly reliable and robust solution designed to meet the demanding requirements of medium voltage electrical distribution systems. Originating from China, this switchgear is engineered to handle voltages up to 12kV, making it ideal for various industrial and utility applications. Its 3-pole configuration ensures efficient and safe operation, while supporting both 50Hz and 60Hz frequency systems, offering versatile compatibility worldwide.
One of the standout features of the MACO MV Switchgear is its impressive short circuit withstand capability, ranging from 25kA to 50kA, which guarantees enhanced safety and durability even under extreme electrical faults. This makes it an excellent choice for critical infrastructure where reliability is paramount. The protection grades IP67 and IP4X provide superior protection against dust and water ingress, allowing this switchgear to perform reliably in harsh environmental conditions, including outdoor installations and industrial plants.
The MACO MV Switchgear is commonly employed in applications such as 12kV switchgear panels, 13.8 kV Ring Main Units (RMU Switchgear), and other medium voltage distribution networks. Its robust design and varying weight options from 500kg to 3000kg allow for flexible installation in substations, power generation facilities, and commercial complexes. This versatility also supports integration into complex electrical grids requiring dependable switching and protection solutions.
In practical scenarios, the MACO RMU Switchgear is used in urban and rural power distribution systems to improve network reliability and ensure continuous power supply. It is ideal for ring main unit configurations that facilitate sectionalizing and fault isolation without disrupting the entire network. Additionally, its compact design and high protection grade make it suitable for installation in confined spaces or harsh environments where maintenance access is limited.
Overall, the Macwey Technology MACO MV Switchgear is a cutting-edge product that provides excellent performance and safety in medium voltage applications. Whether deployed as a 12kV switchgear unit or incorporated into a 13.8 kV Ring Main Unit system, it ensures efficient power distribution, fault management, and system protection, making it a trusted choice for power utilities and industrial users alike.
