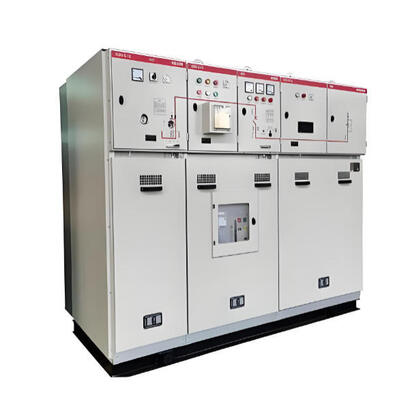

IP4X Protection Degree SF6 switchgear featuring absolute pressure 1.4bar for and safe medium voltage electrical power distribution systems

Product Description:

The MV Switchgear is a high-performance electrical distribution solution designed to meet the rigorous demands of modern power systems. Engineered for reliability and safety, this switchgear is an essential component for medium voltage networks, providing robust control and protection for electrical circuits. It is particularly renowned for its exceptional short circuit withstand capabilities, ranging from 25kA to 50kA, ensuring maximum protection and operational stability even under extreme fault conditions.

This RMU Switchgear is available with current ratings of 630A and 1250A, making it adaptable for a variety of medium voltage applications. Its design supports a three-pole configuration, which is standard for facilitating efficient and secure switching operations in three-phase power systems. The versatility of this switchgear is further enhanced by its control voltage options, which include 24 V, 48 V, and 220 V, with an additional 110 V option available upon request. These control voltage options accommodate different operational environments and control system requirements, thereby broadening its applicability across various industries.

One of the defining features of this Gas Insulated Metal Enclosed Switchgear is its compact and sealed design, which ensures superior insulation and protection against environmental factors. This design significantly reduces maintenance requirements and extends the lifespan of the equipment. The gas insulation technology also contributes to the switchgear’s safety by minimizing the risk of electrical arcing and enhancing the overall reliability of the power distribution system.

The MV Switchgear complies with international standards IEC 62271-200 and ANSI, underscoring its quality and safety benchmarks. Compliance with these standards guarantees that the switchgear meets stringent criteria for performance, durability, and safety, making it suitable for deployment in various global markets. This adherence to standards also ensures interoperability and compatibility with other electrical equipment, facilitating seamless integration within existing power infrastructure.

The 12kV switchgear variant of this product line is especially suited for medium voltage distribution networks, offering an optimal balance between size, performance, and cost-effectiveness. It is designed to efficiently handle the electrical loads typical of industrial, commercial, and utility applications, thereby improving operational efficiency and power system reliability.

In summary, the MV Switchgear is a state-of-the-art electrical distribution device that combines high current ratings, exceptional short circuit withstand capacity, and flexible control voltage options within a robust, gas insulated metal enclosed design. Its compliance with IEC and ANSI standards further ensures its suitability for a wide range of applications. Whether used as an RMU Switchgear or as part of a 12kV switchgear system, this product delivers superior performance, safety, and reliability, making it an indispensable element in modern medium voltage power distribution networks.

Features:

• Product Name: MV Switchgear
• Weight: Varies from 500kg to 3000kg
• Control Voltage: 24 V / 48 V / 220 V (110 V on request)
• Current Ratings: 630A, 1250A
• Frequency: 50Hz / 60Hz
• Protection Grade: IP67, IP4X
• Designed as outdoor switchgear suitable for harsh environments
• Available in 11 kV Ring Main Unit and 13.8 kV Ring Main Unit configurations

Technical Parameters:

Applications:

The Macwey Technology MACO MV Switchgear is a highly reliable and versatile electrical distribution solution designed to meet the demanding needs of medium voltage networks. Originating from China, this switchgear is engineered with a modular design that allows for flexible configuration and easy maintenance. It is available in three poles, with current ratings of 630A and 1250A, making it suitable for a wide range of applications. The weight of the unit varies from 500kg to 3000kg, depending on the specific configuration and components included. Control voltage options include 24 V, 48 V, and 220 V, with 110 V available on request, ensuring compatibility with various control systems.

The MACO MV Switchgear is ideally applied in scenarios requiring high reliability and safety, such as urban and industrial power distribution networks. Its SF6 insulated switchgear technology provides excellent arc-quenching properties and insulation performance, which is critical for ensuring safe operation under medium voltage conditions. The SF6 insulation also contributes to the compactness and longevity of the equipment, making it an excellent choice for space-constrained installations and environments demanding minimal maintenance.

This switchgear is particularly well-suited for use as an 11 kV Ring Main Unit (RMU), where continuous power supply and network flexibility are paramount. In ring main unit configurations, the MACO switchgear facilitates seamless switching operations, fault isolation, and load management, thereby enhancing the reliability of the electrical distribution system. Its robust construction and modular design mean it can be adapted for various network topologies, including radial and looped systems, commonly found in urban grids, commercial complexes, and industrial facilities.

Typical application occasions for the Macwey MACO MV Switchgear include substations, industrial plants, renewable energy installations, and utility networks where medium voltage distribution is critical. It is instrumental in scenarios demanding high switching capacity and safety, such as power generation sites, mining operations, and large manufacturing plants. Additionally, the switchgear’s ability to operate smoothly under different control voltages makes it adaptable for integration with modern automation and remote control systems, enhancing operational efficiency and monitoring capabilities.

In summary, the Macwey Technology MACO MV Switchgear stands out as a dependable and efficient solution for medium voltage applications. Its RMU switchgear configuration, 11 kV ring main unit compatibility, and SF6 insulated switchgear design ensure it meets the highest standards of safety, performance, and adaptability across diverse electrical distribution scenarios worldwide.
