Three Phase CT PT Transformer Combined Dry Type Current Transformer 35kV

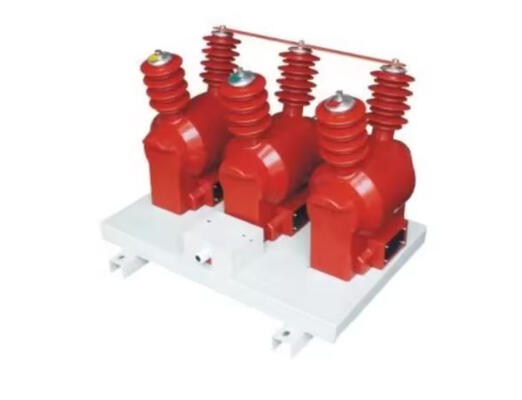

Large Image : Three Phase CT PT Transformer Combined Dry Type Current Transformer 35kV

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	MKSZY-35W

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$80-380
Packaging Details:	wooden pallet
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	10000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	35 KV
Accuracy Rating:	0.2 And 0.2 S	Rated Voltage Ratio:	3500/√3/100/√3 V
Rated Primary Current:	5~800 A	Rated Secondary Current:	5 A Or 1 A
Highlight:	Three Phase CT PT Transformer , Combined Dry Type Current Transformer , Dry Type Current Transformer 35kV

35 kV Outdoor Dry Type Combined Instrument Transformer with 0.2S Accuracy and 20000/100V Rating

The MKSZY-35W is a high-performance outdoor three-phase dry type combined instrument transformer designed for precise voltage and current measurement in 35 kV systems.

Technical Specifications

Rated Voltage: 35 kV

Accuracy Rating: 0.2 and 0.2 S

Rated Voltage Ratio: 3500/√3/100/√3 V

Rated Primary Current: 5~800 A

Rated Secondary Current: 5 A or 1 A

Rated Capacity: Current 0.2S-class 15VA; 30VA voltage part 0.2 class

Rated Short-time Current Ratio (Ith): 75 I1n/s

Rated Dynamic Thermal Stability: 2.5 Ith

Performance Data

Rated Primary Current (A)	Accuracy Class Combination	Rated Output (VA) 0.2S	Short Time Thermal Current (kA/S)	Rated Dynamic Current (kA)
5-100	0.2S/0.2S	15/15	75/1n	250/1n
150
200
300
400
500
600-800

Overall Dimensions
