15kV 24kV CT PT Transformer Industrial Potential Transformer MDZX(F)9-35

Large Image : 15kV 24kV CT PT Transformer Industrial Potential Transformer MDZX(F)9-35

Product Details:

Place of Origin:	China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	MDZX(F)9-35

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$190
Packaging Details:	wooden pallet
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	10000 piece

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	15kV/24kV/35kV
Rated Voltage Ratio:	35000/√3/100	Accuracy Class Combination:	0.2/6P、0.5/6P、0.2/0.2/6P
Max Output:	600VA	Rated Insulation Level:	40.5/95/200kV
Highlight:	15kV CT PT Transformer , 24kV CT PT Transformer , Industrial Potential Transformer

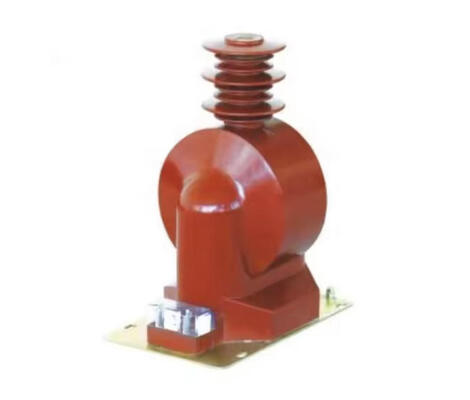

MDZX(F)9-35 15kV 24kV Potential Transformer PT VT Voltage Transformer with Rated Voltage Ratio 35000/√3/100

Macwey MDZX(F)9-35 15kV 24kV Potential Transformer PT VT Voltage Transformer

Applicable Working Conditions

The height above sea level is not above 1000m (please indicate height above sea level if used in high land area)
Maximum change of environment temperature doesn't exceed 5℃ to 40℃ (please indicate in the order if there are special requirements)
Ordinary products can be used in areas with relative humidity not exceeding 85%
Installation site must be free from gas, steam, chemical sedimentation, dust, or other explosive and corrosive media that seriously affect transformer performance
No serious vibration or bump at installation site

Precautions

Never allow open circuit of secondary winding when primary current goes through current transformer, as this may produce high voltage and affect product performance
Never allow short circuit of secondary winding of voltage transformer as this may burn the transformer
Repeated power frequency withstand voltage test of primary winding must be conducted under 80% of stipulated test voltage value

Technical Data

Type	Rated voltage ratio (V)	Accuracy class combination	Rated output (VA)	Max output (VA)	Rated insulation level (kV)
MDZX9-35	35000/√3/100/√/100/3	0.2/6P	30/100	600	40.5/95/200
		0.5/6P	50/100
MDZXF9-35	35000/√3/100/√3/100/√3/100/3	0.2/0.2/6P	20/20/100	20*300
		0.2/0.5/6P	20/30/100
		0.5/0.5/6P	30/30/100

Overall Dimensions
