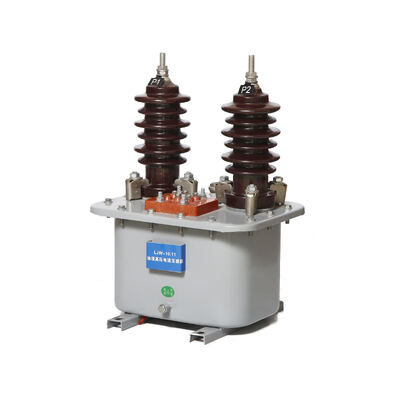

Oi Immersed CT PT Transformer 3kV / 6kV / 10kV High Voltage Current Transformers

Large Image : Oi Immersed CT PT Transformer 3kV / 6kV / 10kV High Voltage Current Transformers

Product Details:

Place of Origin:	Ningbo China
Brand Name:	MacweyTEK
Certification:	ISO9001
Model Number:	JDJ-3, 6, 10, 12

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$120
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	5000 pcs

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	3kV/6kV/10kV，50Hz
Structure Type:	Single-phase, Oil-Immersed Sealed Insulation	Accuracy Class:	0.2, 0.5, 1 (Metering & Protection)
Application Scope:	Indoor High-Voltage Power Systems	Compliance:	GB1207-2006 / IEC186 Standards
Highlight:	Oi Immersed CT PT Transformer , CT PT Transformer 3kV , 10kV High Voltage Current Transformers

JDJ-3, 6, 10, 12 Oil-Immersed Voltage Transformer Outdoor Oil Type High Voltage Current Transformer CT

Product descriptions

The JDJ Series Oil-Immersed Voltage Transformers (models JDJ-3, JDJ-6, JDJ-10) are single-phase, oil-filled high-voltage transformers designed for 10kV and below power systems at 50Hz. ·Widely used for electric energy metering, voltage measurement, and relay protection. ·Oil-immersed insulation ensures excellent dielectric strength, stable performance, and long service life. ·Built to operate reliably under harsh environmental conditions with minimal maintenance. ·Fully compliant with IEC and GB standards, providing high precision and safety for critical power distribution systems.

Service conditon ·Altitude: ≤1000m ·Ambient temperature: -5°C ~ +40°C ·Relative humidity: ≤85% at 20°C ·Vibration resistance: Passes 0.4g test (equivalent to 9-degree earthquake) ·Application: Indoor use in high-voltage power systems Construction & Features ·Oil-immersed insulation system: Provides high dielectric strength and heat dissipation. ·Core & windings: Primary and secondary windings concentrically wound on laminated silicon steel core. ·Oil tank design: Sealed structure filled with insulating oil, maintaining 10–15mm clearance between oil and cover. ·High- & low-voltage bushings: Lead wires brought out via bushings for easy wiring and reliable operation. ·Maintenance access: Equipped with oil-filling plug and sealed cover to prevent leakage. ·Durability: Resistant to temperature fluctuations and environmental stress. Technical Parameters ·Rated voltage levels: 3kV / 6kV / 10kV ·Frequency: 50Hz ·Accuracy classes: 0.2, 0.5, 1 (for metering & protection) ·Insulation: Oil-filled, sealed tank design ·Standards: Complies with GB1207-2006 / IEC186 (Specific parameter table available upon request)

Outline & Dimensions
