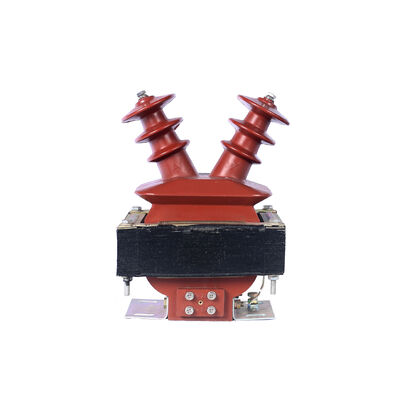

3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration

Large Image : 3kV / 6kV / 10kV CT PT Transformer Epoxy Resin CT Current Transformer With Double Winding Configuration

Product Details:

Place of Origin:	Ningbo,China
Brand Name:	MacweyTEK
Certification:	IEC
Model Number:	JDZJ-3,6 JDZJ-10W

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$85
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T
Supply Ability:	5000 pieces

Contact Now Chat Now

Detailed Product Description

Name:	CT PT Transformer	Rated Voltage:	3kV/6kV/10kV，AC 50Hz
Structure Type:	Single-phase, Epoxy Resin Cast, Double-Winding	Core Feature:	Moisture/Pollution-Resistant, High Insulation Strength
Application Scope:	Indoor Industrial, Voltage Measurement/Metering/Protection	Compliance:	IEC60044-1, GB1208-1997 Standards
Highlight:	3kV CT PT Transformer , 6kV CT PT Transformer , Epoxy Resin CT Current Transformer

JDZJ Series Epoxy Resin Voltage Transformer with Double-Winding Configuration for 3kV-10kV Systems

The JDZJ Series Voltage Transformers are single-phase, epoxy resin-cast insulated devices designed for voltage measurement, energy metering, and relay protection in AC 50Hz medium-voltage power systems.

Available Models

JDZJ-3(W), JDZJ-6(W), and JDZJ-10(W) models covering 3kV, 6kV, and 10kV systems respectively.

Key Features

Double-winding configuration for higher accuracy
Epoxy resin insulation for excellent durability and moisture resistance
Superior protection against pollution and environmental factors
Ideal for indoor and industrial applications requiring precision and reliability
Encapsulated coil structure ensures high insulation strength and long service life

Service Conditions

Altitude: ≤1000m
Ambient temperature: -5°C to +40°C
Relative humidity: ≤85% at 20°C
Vibration resistance: Passed 0.4g test (equivalent to 9° earthquake intensity)
Pollution resistance: Suitable for moderate pollution environments

Construction Details

Epoxy resin cast insulation with piled ring core
Primary & secondary windings concentrically wound on the same core
Secondary terminals routed through embedded nuts at the base (marked a.x)
Primary terminals routed through high-voltage posts (marked A.X)

Compliance Standards

Meets IEC60044-1 and GB1208-1997 standards

Outline & Dimensions
